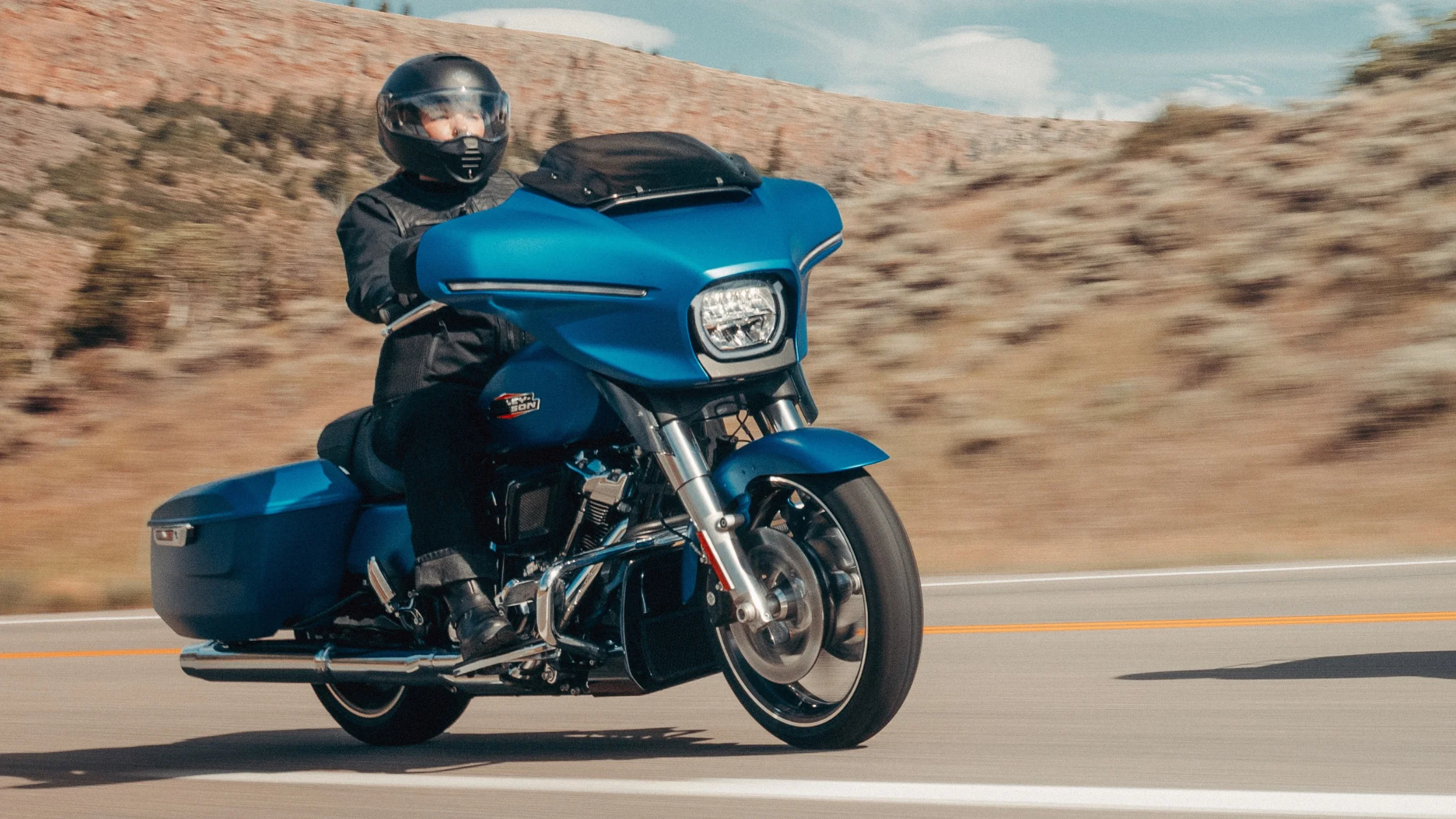

The 2026 Harley-Davidson® Street Glide® is engineered as a touring motorcycle that integrates a high-displacement V-twin engine, a rigid steel chassis, and a comprehensive electronic system. The model is configured to deliver consistent torque output, stable handling geometry, and integrated rider assistance technologies. Its structural design supports long-distance operation, while its onboard systems provide navigation, connectivity, and performance monitoring. Each component, from the drivetrain to the braking system, is specified to maintain durability and operational consistency across varying riding conditions.
Engine Architecture and Output Characteristics
The 2026 Harley-Davidson® Street Glide® is powered by the Milwaukee-Eight® 117 engine, which features a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The engine uses a bore of 4.075 inches and a stroke of 4.5 inches, producing a configuration that emphasizes torque generation at lower engine speeds. The compression ratio is set at 10.3 to 1, allowing efficient combustion while maintaining engine reliability.
The valvetrain consists of pushrod-operated overhead valves with four valves per cylinder and hydraulic self-adjusting lifters. This design reduces the need for manual valve adjustments and ensures consistent valve operation over extended use. The fuel system utilizes Electronic Sequential Port Fuel Injection, which delivers fuel in a controlled sequence to each cylinder. This improves throttle response and maintains consistent combustion across varying operating conditions.
The engine produces 130 foot-pounds of torque at 3,250 revolutions per minute and generates 105 horsepower at 4,600 revolutions per minute. These output figures support both low-speed acceleration and sustained highway performance. The lubrication system is a pressurized dry-sump configuration, which maintains oil circulation independent of crankcase conditions. Air intake is managed through a fiberglass washable air cleaner, and exhaust gases are routed through a 2-1-2 dual exhaust system with tapered mufflers to maintain balanced exhaust flow.
Transmission System and Gear Ratios
The drivetrain is designed to transfer engine output efficiently through a combination of chain and belt systems. The primary drive uses a chain with a 34 to 46 ratio, while the final drive uses a belt with a 32 to 68 ratio. This configuration reduces maintenance requirements and provides smooth power delivery.
The motorcycle is equipped with a 6-speed Cruise Drive® transmission. Gear ratios are structured to provide progressive acceleration and stable cruising performance. The first gear ratio is 9.593, followed by 6.65 in second gear, 4.938 in third gear, 4.0 in fourth gear, 3.407 in fifth gear, and 2.875 in sixth gear. These ratios allow for controlled power distribution across a wide speed range.
A mechanically actuated 10-plate wet clutch is integrated into the drivetrain. The clutch includes Assist and Slip functionality, which reduces lever effort during operation and limits rear wheel instability during aggressive downshifting. This improves control during both acceleration and deceleration phases.
Frame Construction and Suspension Configuration
The frame is constructed from mild steel and uses a tubular design with a two-piece stamped and welded backbone. Cast and forged junctions are incorporated to increase structural rigidity. The frame includes twin downtubes and a bolt-on rear section with forged fender supports. Welding processes include MIG welding to ensure structural consistency.
The swingarm is also fabricated from mild steel and consists of a two-piece drawn and welded structure with forged junctions. This contributes to stability under load and during cornering.
Front suspension is managed by a 49 millimeter Dual Bending Valve fork. This system is designed to provide controlled damping characteristics across varying road conditions. Rear suspension consists of dual outboard emulsion shocks with three inches of travel. These shocks include preload adjustability, allowing riders to modify suspension behavior based on load and riding preferences.
Suspension travel measures 4.6 inches at the front and 3 inches at the rear. This configuration supports a balance between ride comfort and handling precision. The motorcycle has a wheelbase of 64 inches, which contributes to straight-line stability and predictable steering response.
Steering Geometry and Ground Clearance
Steering geometry is defined by a rake angle of 26 degrees and a fork angle of 29.25 degrees. The trail is measured at 6.7 inches. These parameters are calibrated to provide stable handling at highway speeds while maintaining maneuverability in lower-speed conditions.
Static ground clearance is specified at 5.5 inches. This clearance supports operation over uneven surfaces while maintaining a low center of gravity. The seat height is 26.4 inches when laden and 28.1 inches when unladen, contributing to accessibility and balance during stops.
Braking System Configuration and Control Systems
The braking system includes dual front disc brakes with 12.6-inch rotors and a single rear disc brake with an 11.8-inch rotor. The front braking system uses 4-piston fixed calipers mounted in an axial configuration, while the rear uses a single fixed caliper. Rotor thickness measures 0.18 inches at the front and 0.28 inches at the rear.
Anti-lock Braking System functionality is included to prevent wheel lock during braking. Electronic Linked Braking distributes braking force between the front and rear systems to maintain stability. These systems operate in conjunction to provide controlled deceleration under varying conditions.
Additional braking-related technologies include Drag-torque Slip Control, which manages rear wheel slip during deceleration, and Vehicle Hold Control, which maintains brake pressure when the motorcycle is stationary on an incline.
Wheels, Tires, and Road Contact
The 2026 Harley-Davidson® Street Glide® uses cast aluminum wheels for both front and rear applications. The front wheel has a diameter of 19 inches and a width of 3.5 inches, while the rear wheel measures 18 inches in diameter and 5 inches in width. This configuration supports stability and load distribution.
Tires are specified as Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire size is 130 over 60 B19, and the rear tire size is 180 over 55 B18. These specifications are selected to provide traction, durability, and consistent contact with the road surface.
Electrical System and Lighting Components
The electrical system includes a sealed, maintenance-free 12-volt battery with a capacity of 28 amp-hours and a rating of 405 cold cranking amps. Charging is handled by a three-phase system rated at 58 amps, capable of producing up to 754 watts of power at 13 volts.
The starting system uses a 1.6 kilowatt electric starter motor with solenoid engagement. Lighting components are fully LED-based, including the headlamp, tail and stop lamps, and turn signals. LED lighting improves visibility and reduces power consumption.
A USB-C power outlet rated at 15 watts is located within the media storage compartment, allowing device charging during operation.
Infotainment System and Connectivity Features
The infotainment system operates on Skyline™ OS and features a 12.3-inch full-color TFT display. The display integrates digital gauges and provides access to navigation, media, and vehicle information.
Audio output is delivered through two fairing-mounted speakers measuring 5.25 inches each. Each channel is rated at 50 watts, providing balanced audio output. The system supports AM and FM radio, as well as media playback through USB connections.
Bluetooth® functionality allows for hands-free mobile phone operation and media streaming. Apple CarPlay® compatibility is supported through both wired and wireless connections, enabling smartphone integration.
Navigation functionality is embedded within the system and includes traffic and weather data when connected through a Wi-Fi hotspot. Vehicle information such as air temperature, oil pressure, and engine idle temperature management system status is displayed within the interface.
Performance Metrics and Fuel Efficiency
Performance testing indicates a torque output of 130 foot-pounds measured under standard testing conditions. Power output is recorded at 105 horsepower at 4,600 revolutions per minute. Lean angle capability is measured at 32 degrees on both the left and right sides, indicating balanced cornering clearance.
Fuel capacity is specified at 6 gallons, with a reserve capacity of 1 gallon. The motorcycle achieves an estimated fuel economy of 44 miles per gallon under combined city and highway conditions. Oil capacity is 5 quarts with a filter, while the transmission and primary chain case capacities are 1 quart and 1.1 quarts, respectively. Coolant capacity is 0.82 quarts.
The motorcycle has an as-shipped weight of 774 pounds and a running weight of 811 pounds. Gross vehicle weight rating is 1,360 pounds, with front and rear axle ratings of 500 pounds and 927 pounds, respectively. Luggage capacity measures 2.42 cubic feet, supporting storage requirements for extended travel.
Integrated Rider Safety Enhancements
The 2026 Harley-Davidson® Street Glide® incorporates multiple rider assistance systems designed to improve control and traction. Standard systems include a Traction Control System and a Drag-torque Slip Control System, both of which regulate wheel behavior under acceleration and deceleration.
Cornering-enhanced systems include Cornering Anti-lock Braking, Cornering Electronic Linked Braking, and Cornering Traction Control. These systems adjust braking and traction responses based on lean angle, improving stability during cornering.
A Tire Pressure Monitoring System provides continuous monitoring of tire pressure levels, allowing riders to maintain optimal tire performance. These systems function together to support consistent handling and control.
