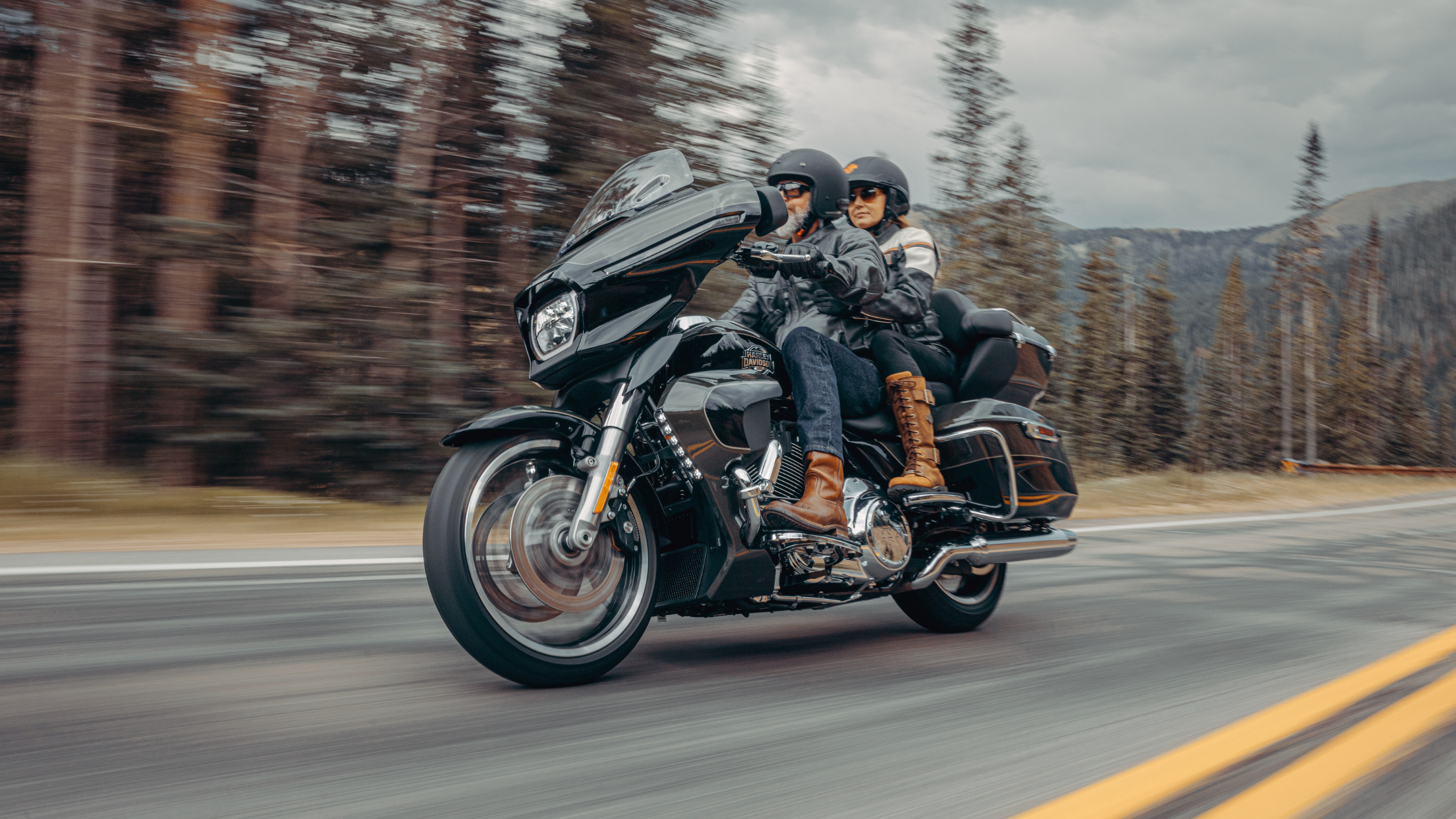

The 2026 Harley-Davidson® Street Glide® Limited is engineered as a full-size touring motorcycle with a focus on mechanical consistency, integrated rider systems, and long-distance functionality. This model incorporates a large-displacement V-twin engine, a six-speed drivetrain, a steel frame structure, and a fully integrated infotainment system. The design supports extended travel with passenger and cargo capacity, while maintaining predictable handling through defined chassis geometry and suspension configuration. The motorcycle measures 103.3 inches in length, 40.7 inches in width, and 56.7 inches in height. It operates on a 64-inch wheelbase, with a 26-degree rake angle, 29.25-degree fork angle, and 6.7 inches of trail, all of which contribute to directional stability during sustained highway operation.
The weight specification is 893 pounds in running order, with a gross vehicle weight rating of 1,360 pounds. This allows the motorcycle to support rider, passenger, and cargo loads within a defined structural limit. The luggage capacity is measured at 5.05 cubic feet, providing enclosed storage volume for touring use. The fuel tank holds 6 gallons, with a reserve warning threshold of 1 gallon. Fuel economy is rated at 45 miles per gallon under estimated city and highway conditions, supporting extended travel intervals between refueling stops.
Milwaukee-Eight® VVT 117 Engine Specifications and Output
The 2026 Harley-Davidson® Street Glide® Limited uses the Milwaukee-Eight® VVT 117 engine, which is configured as a pushrod-operated V-twin with overhead valves and hydraulic self-adjusting lifters. Each cylinder includes four valves, supporting airflow efficiency and combustion consistency. The engine has a bore of 4.075 inches and a stroke of 4.5 inches, producing a total displacement of 117 cubic inches or 1,923 cubic centimeters. The compression ratio is set at 10.3 to 1, supporting controlled combustion and output stability.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. This system meters fuel precisely based on operating conditions, supporting consistent throttle response. The engine uses a pressurized dry-sump lubrication system, which separates oil storage from the crankcase to improve lubrication efficiency during sustained operation. The air intake system includes a washable fiberglass air cleaner, which allows maintenance without replacement. Exhaust routing is configured as a 2-1-2 dual system with tapered mufflers, designed to manage exhaust flow while maintaining consistent back pressure.
Engine output is measured at 131 foot-pounds of torque at 3,250 revolutions per minute and 106 horsepower at 4,600 revolutions per minute. These values indicate that peak torque is delivered at a lower engine speed, supporting acceleration and load carrying without requiring high engine speeds. The torque measurement follows the J1349 standard, which provides a consistent testing method for engine output comparison.
Six-Speed Cruise Drive® Transmission and Drivetrain Configuration
The drivetrain system combines a chain-driven primary drive, a belt-driven final drive, and a six-speed transmission. The primary drive uses a 34 to 46 ratio, while the final drive uses a 32 to 68 ratio. This configuration transfers engine power to the rear wheel with reduced mechanical noise and lower maintenance requirements compared to chain final drives. The transmission is identified as a 6-Speed Cruise Drive® unit, which is designed to maintain lower engine speed during highway travel.
Gear ratios are structured to support gradual power delivery. First gear is set at 9.593, second gear at 6.65, third gear at 4.938, fourth gear at 4.0, fifth gear at 3.407, and sixth gear at 2.875. This range allows the motorcycle to transition from low-speed operation to sustained cruising without abrupt changes in engine speed. The clutch system is a mechanically actuated 10-plate wet clutch with Assist and Slip functionality. This design reduces clutch lever effort and moderates engine braking during downshifts, which supports stability during deceleration.
Chassis Construction and Suspension Engineering
The chassis is built using a mild steel tubular frame with a two-piece stamped and welded backbone. The structure includes cast and forged junctions, twin down-tubes, and a bolt-on rear frame section with forged fender supports. This configuration is assembled using MIG welding, which provides consistent joint strength. The swingarm is also constructed from mild steel, using a two-piece drawn and welded section with forged junctions to support rear wheel alignment and load distribution.
Front suspension is handled by a 49 millimeter Dual Bending Valve fork with 4.6 inches of travel. This fork design manages compression and rebound damping to maintain tire contact with the road surface. Rear suspension consists of dual adjustable emulsion shocks with 3 inches of travel. The left shock includes remote preload adjustment, while the right shock uses threaded preload adjustment. This allows the rider to compensate for additional load from a passenger or cargo, maintaining consistent ride height and suspension response.
Wheel, Tire, and Brake System Configuration
The 2026 Harley-Davidson® Street Glide® Limited uses cast aluminum wheels with a 19-inch diameter front wheel and an 18-inch diameter rear wheel. The front wheel is 3.5 inches wide, while the rear wheel is 5 inches wide. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire, both from the Dunlop® Harley-Davidson® Series. These tire dimensions provide a stable contact patch and support the weight distribution of the motorcycle.
The braking system includes dual front floating rotors with a diameter of 12.6 inches and a thickness of 0.18 inches. The rear brake uses a fixed rotor with a diameter of 11.8 inches and a thickness of 0.28 inches. Front braking is managed by dual four-piston fixed calipers, while the rear uses a single caliper. The system includes Anti-lock Braking System functionality, which prevents wheel lock during braking.
Additional braking and traction systems are integrated into the motorcycle. Electronic Linked Braking distributes braking force between the front and rear wheels. The Traction Control System monitors wheel speed and adjusts engine output to prevent loss of traction. Drag-torque Slip Control System reduces rear wheel instability during aggressive downshifting. Vehicle Hold Control maintains brake pressure during stops on inclines. Tire Pressure Monitoring System provides continuous tire pressure data to the rider.
Cornering Control and Stability Systems
The 2026 Harley-Davidson® Street Glide® Limited includes cornering-enhanced safety systems that adjust braking and traction based on lean angle. The Cornering Enhanced Anti-lock Brake System modifies braking pressure to maintain stability during turns. Cornering Enhanced Electronic Linked Braking distributes braking force in relation to lean angle and traction conditions. Cornering Enhanced Traction Control System adjusts engine output to maintain grip while the motorcycle is leaned. The Cornering Drag-Torque Slip Control System manages rear wheel behavior during deceleration while cornering.
Lean angle capability is rated at 31 degrees on both the left and right sides. This measurement indicates the maximum lean angle before contact with ground components occurs. Maintaining an equal lean angle on both sides supports balanced handling characteristics.
Electrical System and Lighting Integration
The electrical system uses a sealed, maintenance-free 12-volt battery with a capacity of 28 amp-hours and a rating of 405 cold cranking amps. Charging is provided by a three-phase 58-amp system, which produces up to 754 watts at 13 volts. The starting system uses a 1.6 kilowatt electric starter with solenoid engagement.
Lighting components are based on LED technology. The headlamp, tail lamp, stop lamp, front signal lights, and rear turn signals all use LED units. Additional LED fog lamps are integrated into the lower fairings. LED lighting provides consistent illumination and reduced power consumption compared to traditional bulb systems.
Infotainment System and Connectivity Features
The infotainment system operates on Skyline™ OS and uses a 12.3-inch full-color TFT display. This display integrates digital gauges and system controls. The audio system includes four speakers, each measuring 6.5 inches, with two speakers mounted in the fairing and two in the Tour-Pak®. Each channel produces 50 watts of output, supporting audio playback at highway speeds.
The system supports AM and FM radio, as well as media playback through USB connection. USB-C connectivity allows integration with smartphones and other devices. The system supports Apple CarPlay® in both wired and wireless configurations. Bluetooth® connectivity enables hands-free phone operation, media streaming, and headset communication.
The navigation system is embedded within the infotainment unit. It provides route guidance along with traffic and weather information through a Wi-Fi hotspot connection. The vehicle information display provides data such as air temperature, oil pressure, and engine idle temperature management system status. Text-to-speech functionality is available for supported languages, allowing navigation prompts to be delivered audibly.
Ergonomics and Rider Interface Measurements
Seat height is measured at 27.5 inches in the laden condition and 29.1 inches in the unladen condition. These values reflect the motorcycle with and without rider weight. Static ground clearance is 5.9 inches, supporting clearance over road irregularities. The front suspension provides 4.6 inches of travel, while the rear suspension provides 3 inches of travel.
The 2026 Harley-Davidson® Street Glide® Limited includes integrated digital gauges within the main display, eliminating the need for separate analog instrumentation. Controls are positioned to allow access to infotainment, navigation, and system settings without requiring the rider to remove hands from the handlebars for extended periods.
