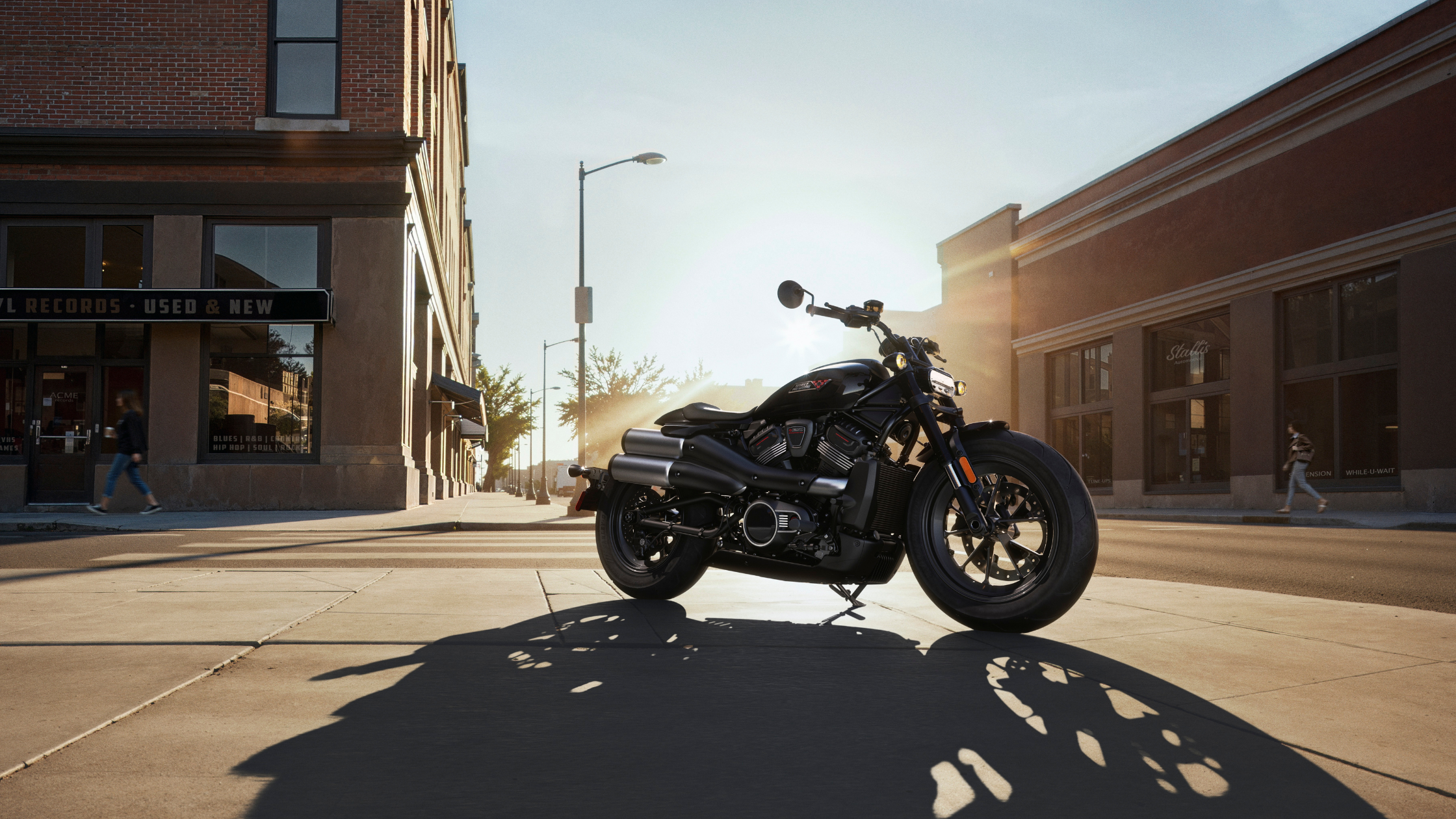

The 2026 Harley-Davidson® Sportster® S is designed as a performance-oriented motorcycle that integrates a liquid-cooled V-twin engine, a rigid structural chassis, adjustable suspension components, and a defined set of electronic rider systems. The model uses the Revolution® Max 1250T engine with a displacement of 1,252 cc and a compression ratio of 12.0:1. This configuration supports a measured output of 121 horsepower at 7,500 rpm and 93 ft-lb of torque at 6,000 rpm. The motorcycle combines these figures with a six-speed transmission, a belt final drive, and a mechanically assisted clutch system. Each component contributes to consistent power delivery, controlled acceleration, and predictable drivetrain behavior across varying speeds.
The dimensional structure includes an overall length of 89.4 inches, width of 33.1 inches, and height of 42.7 inches. The wheelbase measures 59.8 inches, with a rake angle of 30 degrees and a fork angle of 28 degrees. Trail is listed at 5.8 inches. These figures establish the motorcycle’s stance and steering geometry. The laden seat height is 28.9 inches, and the unladen seat height is 30.1 inches. Static ground clearance measures 3.5 inches. The weight specification is 487 pounds as shipped and 502 pounds in running order. These measurements define the physical layout and influence handling stability, balance, and rider reach.
Engine Configuration and Internal Architecture
The Revolution® Max 1250T engine uses a chain-driven double overhead camshaft configuration with hydraulic self-adjusting lifters. The system includes variable valve timing on both intake and exhaust valves, with four valves per cylinder. This arrangement improves airflow management and combustion efficiency across the engine’s operating range. The bore measures 4.134 inches, and the stroke is 2.846 inches. These dimensions support the engine’s displacement and contribute to its torque characteristics.
Fuel delivery is managed by Electronic Sequential Port Fuel Injection. The intake system uses a downdraft configuration with tuned velocity stacks and a washable filter element. This design supports consistent airflow and improves intake efficiency. The exhaust system follows a 2-into-1-into-2 layout with an integrated catalyst positioned in the muffler. The lubrication system uses a semi-dry sump design, which supports consistent oil distribution and engine cooling during sustained operation.
The engine operates with a recommended fuel rating of 91 octane or higher. The torque output is measured using the J1349 testing method, while lean angle measurements follow J1168 standards. The motorcycle achieves lean angles of 35 degrees on both the right and left sides. These figures indicate the available cornering clearance relative to the chassis configuration.
Transmission, Clutch, and Final Drive System
The drivetrain system integrates a gear-driven primary drive with a 49 to 89 ratio and a belt-driven final drive with a 34 to 80 ratio. The clutch is a mechanical eight-plate wet design with assist and slip functionality. This configuration reduces lever effort during operation and helps manage rear wheel behavior during rapid downshifting. The transmission is a 6-speed unit that distributes engine power across multiple gear ratios.
The overall gear ratios are 12.21 in first gear, 9.022 in second, 6.994 in third, 5.641 in fourth, 4.731 in fifth, and 4.131 in sixth. These ratios define how engine output is translated to rear wheel motion and influence acceleration characteristics and cruising efficiency. The combination of the clutch system, gear ratios, and belt final drive supports smooth engagement, reduced maintenance requirements, and consistent power transfer.
Frame Construction and Structural Design
The frame uses a stressed-member configuration constructed from high-strength low-alloy steel in a trellis layout. The structure includes stamped, cast, and forged junctions, with MIG-welded connections and an aluminum forged mid-structure. This approach increases rigidity and reduces the need for additional frame mass. The engine is integrated as a structural component, which contributes to overall chassis strength and weight distribution.
The swingarm is also constructed from high-strength low-alloy steel, using tubular sections, a stamped cross-member, and forged axle junctions. This design supports rear wheel alignment and maintains structural integrity under acceleration and braking forces. The combined frame and swingarm configuration contributes to predictable handling and structural stability.
Suspension System and Adjustability
The front suspension uses a 43 mm inverted fork with full adjustability for compression damping, rebound damping, and spring preload. The fork assembly includes aluminum triple clamps, which contribute to reduced weight and increased rigidity. The rear suspension uses a linkage-mounted piggyback monoshock with adjustable compression, rebound, and hydraulic spring preload. This system allows riders to adjust suspension characteristics to match riding conditions and load requirements.
Front suspension travel measures 3.6 inches, while rear suspension travel measures 3.2 inches. These values align with the motorcycle’s low-profile configuration and performance orientation. The adjustability of both front and rear components provides flexibility in tuning ride quality and handling response.
Wheel and Tire Specifications
The 2026 Harley-Davidson® Sportster® S uses aluminum cast wheels with a satin black finish. The front wheel has a diameter of 17 inches and a width of 4.5 inches. The rear wheel has a diameter of 16 inches and a width of 5 inches. Tire specifications are 160/70R17 for the front and 180/70R16 for the rear. Both tires are from the Dunlop® Harley-Davidson® Series GT503 radial lineup.
These dimensions affect traction, cornering stability, and braking performance. The wider rear tire supports torque transfer, while the front tire contributes to steering precision. The combination of wheel size and tire profile supports the motorcycle’s performance characteristics and maintains consistent contact with the road surface.
Braking System and Control Features
The front braking system uses a radially mounted monoblock four-piston caliper paired with a single floating rotor that measures 320 mm in diameter and 5 mm in thickness. The rear braking system uses a floating single-piston caliper with a 260 mm rotor. The front brake is not a dual-disc configuration, which reduces unsprung weight while maintaining adequate stopping capability.
The braking system includes Anti-lock Braking System as standard equipment. Additional control systems include the Traction Control System, Drag-torque Slip Control System, and Wheel Lift Mitigation. These systems regulate braking and traction to maintain stability during acceleration and deceleration. Tire Pressure Monitoring System is also included and provides continuous monitoring of tire pressure conditions.
Cornering-specific enhancements include the Cornering Enhanced Anti-lock Braking System, the Cornering Enhanced Traction Control System, and the Cornering Drag-Torque Slip Control System. These systems adjust performance parameters based on lean angle and improve control during cornering maneuvers. Enhanced Lift Mitigation is also included to manage front wheel lift during acceleration.
Electrical System and Lighting Configuration
The electrical system uses a sealed absorbed glass mat battery rated at 12 volts, 12 amp-hours, and 225 cold cranking amps. Charging is handled by a three-phase 45 amp system that produces 300 watts at 13 volts at 1,200 rpm and up to 585 watts at 13 volts at 2,250 rpm. The starting system uses a 0.9 kW electric starter motor with direct drive engagement.
Lighting components are fully LED. The headlamp includes both low and high beam functionality along with signature position lighting. Rear lighting and turn signals are also LED-based. The use of LED technology improves durability and energy efficiency while maintaining visibility.
Instrumentation and Connectivity Interface
The 2026 Harley-Davidson® Sportster® S uses a 4-inch color TFT display with a 102 mm viewable area. The display provides information including speed, gear position, odometer, fuel level, clock, trip data, ambient temperature, and tachometer indication. Additional alerts include low temperature, side stand status, and tip-over indication. The system also provides range estimation and cruise indication.
Bluetooth® functionality allows connection to a mobile device for phone calls, media playback, and navigation through the Harley-Davidson® application. Hands-free mobile phone capability is included, along with Bluetooth® support for phone and media. A headset intercom function is available for communication. Text-to-speech functionality depends on the connected device.
The motorcycle includes a USB-C port with output capability of 5 volts at 3 amps for charging and instrument updates. The vehicle information system also displays engine temperature, battery voltage, ambient air temperature, and tire pressure data. This interface provides essential operational data without additional external devices.
Fuel System, Capacity, and Operating Range
The fuel tank capacity is 3.1 gallons, with a reserve capacity of 0.8 gallons indicated by a warning light. Fuel economy is estimated at 49 miles per gallon based on city and highway testing conditions. These figures provide an indication of range between refueling intervals.
Oil capacity with filter is 4.75 quarts, and coolant capacity is 2.32 quarts. These specifications define service requirements and fluid management for the engine system. The motorcycle uses a liquid cooling system to maintain consistent operating temperatures under varying conditions.
