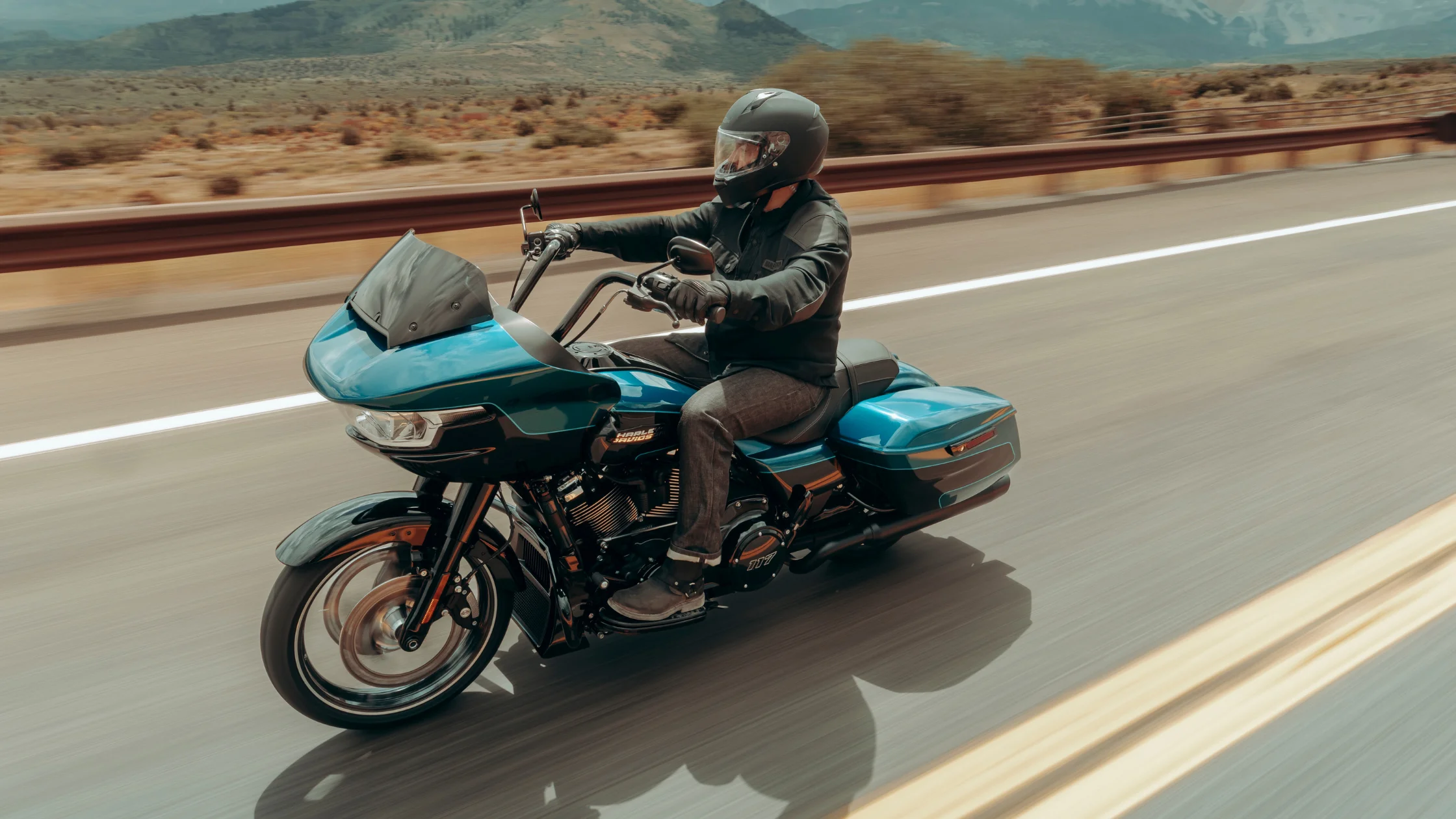

The 2026 Harley-Davidson® Road Glide® is engineered as a full-scale touring motorcycle that combines a large-displacement engine, a rigid frame structure, and integrated electronic systems. This model uses the FLTRX platform configuration and focuses on measurable output, rider support systems, and long-distance efficiency. The design incorporates a fixed front fairing layout, a Milwaukee-Eight® 117 powertrain, and a suite of safety and infotainment technologies that operate through a centralized display system. Each component is configured to support sustained riding conditions, consistent handling, and predictable mechanical response.
Engine Configuration and Output Characteristics
The 2026 Harley-Davidson® Road Glide® is equipped with a Milwaukee-Eight® 117 engine, which uses a V-twin configuration with a displacement of 117 cubic inches or 1,923 cubic centimeters. The engine uses a bore measurement of 4.075 inches and a stroke length of 4.5 inches. The compression ratio is set at 10.3 to 1, which supports controlled combustion and efficient fuel utilization under varying load conditions.
The valve train consists of pushrod-operated overhead valves with hydraulic self-adjusting lifters. Each cylinder contains four valves, allowing for improved airflow and consistent combustion. The lubrication system uses a pressurized dry-sump design, which maintains oil circulation during extended operation and high-temperature conditions.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates fuel input based on throttle position and engine demand. The intake system includes a fiberglass washable air cleaner, which supports filtration efficiency and reusability. Exhaust output is managed through a 2-1-2 dual exhaust system with tapered mufflers, designed to balance exhaust flow and back pressure.
The engine produces 130 foot-pounds of torque at 3,250 revolutions per minute and delivers 105 horsepower at 4,600 revolutions per minute. These figures indicate a torque-focused output curve that supports low- and mid-range acceleration, along with sustained highway operation.
Drivetrain and Gear Ratio Calibration
The drivetrain system includes a chain-driven primary drive with a 34 to 46 ratio and a belt-driven final drive with a 32 to 68 ratio. This configuration supports durability and reduced maintenance compared to chain-driven final systems. The clutch system uses a mechanically actuated 10-plate wet clutch with assist and slip functionality. This design reduces lever effort and improves control during downshifting.
The transmission is a 6-speed Cruise Drive® unit, calibrated to provide progressive gear spacing. The first gear ratio is 9.593, followed by second gear at 6.65 and third gear at 4.938. Fourth gear is set at 4.0, fifth gear at 3.407, and sixth gear at 2.875. This range of ratios allows for controlled acceleration in lower gears and reduced engine speed during highway cruising in higher gears.
Frame Construction and Structural Layout
The frame uses a mild steel tubular design with a two-piece stamped and welded backbone. The structure incorporates cast and forged junctions to increase rigidity while maintaining serviceability. Twin down-tubes support load distribution across the chassis, while the bolt-on rear frame allows for component access and replacement.
The swingarm is constructed from mild steel using a two-piece drawn and welded section with forged junctions. This configuration supports rear suspension alignment and contributes to overall chassis stability. The motorcycle has a wheelbase of 64 inches, which supports directional stability during extended travel.
Steering geometry includes a rake angle of 26 degrees and a fork angle of 29.25 degrees. The trail measurement is 6.8 inches, which contributes to predictable steering response and stability at higher speeds. Static ground clearance is measured at 5.7 inches.
Suspension Components and Ride Control
Front suspension is managed by a 49 millimeter Dual Bending Valve fork. This system is designed to provide consistent damping performance and reduce front-end dive during braking. The fork configuration supports controlled compression and rebound characteristics across varying road surfaces.
Rear suspension consists of dual outboard emulsion shocks with preload adjustability. The rear suspension provides 3 inches of travel, allowing adjustment based on rider weight and cargo load. Front suspension travel is measured at 4.6 inches, supporting ride comfort and control over uneven surfaces.
Dimensions, Weight, and Load Capacity
The 2026 Harley-Davidson® Road Glide® has an overall length of 94.9 inches, a width of 37.2 inches, and a height of 51.8 inches. The seat height when laden is 26.6 inches, while the unladen seat height is 28.3 inches. These measurements provide a low seating position and accessible rider ergonomics.
The motorcycle has a running weight of 838 pounds and a shipped weight of 802 pounds. The gross vehicle weight rating is 1,360 pounds, with a front axle rating of 500 pounds and a rear axle rating of 927 pounds. These values define the load capacity for the rider, passenger, and cargo.
Fuel capacity is set at 6 gallons, with a reserve capacity of 1 gallon indicated through a warning system. Oil capacity with filter is 5 quarts, while the transmission requires 1 quart and the primary chain case requires 1.1 quarts. Coolant capacity is measured at 0.82 quarts.
Luggage storage volume is 2.42 cubic feet, supporting long-distance travel requirements. The motorcycle is configured to carry both rider and cargo loads without compromising stability.
Wheels, Tires, and Braking Configuration
The 2026 Harley-Davidson® Road Glide® uses cast aluminum wheels, with a 19-inch front wheel and an 18-inch rear wheel. The front wheel has a width of 3.5 inches, while the rear wheel measures 5 inches in width. Tire specifications include a 130 over 60 B19 front tire and a 180 over 55 B18 rear tire. These tires are part of the Dunlop® Harley-Davidson® Series and are designed for touring applications.
Braking performance is supported by dual floating front rotors with a diameter of 12.6 inches. The front braking system uses 4-piston fixed calipers mounted axially. The rear braking system includes a single fixed rotor with a diameter of 11.8 inches and a single caliper.
The braking system includes standard Anti-lock Braking functionality, which prevents wheel lock during sudden braking. Rotor thickness measures 0.18 inches at the front and 0.28 inches at the rear, supporting heat dissipation and consistent braking performance.
Electrical System and Power Distribution
The electrical system uses a sealed, maintenance-free 12-volt battery with a capacity of 28 amp-hours and 405 cold cranking amps. The charging system is a three-phase 58-amp unit, capable of producing up to 754 watts at 13 volts. This system supports consistent power delivery to onboard electronics and lighting systems.
The starting system uses a 1.6 kilowatt electric starter motor with solenoid engagement. This configuration supports reliable ignition under varying environmental conditions.
Lighting systems include LED headlamps, LED tail and stop lamps, and LED front and rear turn signals. These components are designed to provide visibility and energy efficiency. Auxiliary lamps are not included in this configuration.
Integrated Infotainment and Connectivity Systems
The 2026 Harley-Davidson® Road Glide® includes a Skyline™ OS infotainment system displayed through a 12.3-inch full-color TFT screen. This system integrates vehicle data, navigation, and media functions into a single interface.
Audio output is delivered through two 5.25-inch fairing-mounted speakers, each powered by a 50-watt channel. The system supports AM and FM radio, along with media playback through USB-C connectivity. External storage devices and smartphones can connect through the media interface.
Bluetooth® functionality supports hands-free phone operation and media streaming. Apple CarPlay® compatibility is available through both wireless and wired connections, allowing integration with supported mobile devices. The navigation system is embedded and provides location data, traffic information, and weather updates through a connected network.
The display includes digital gauges that present information such as air temperature, oil pressure, and engine idle temperature management system status. A 15-watt USB-C power outlet is located in the media storage compartment for device charging.
Rider Safety and Stability Systems
The 2026 Harley-Davidson® Road Glide® includes multiple electronic systems that support rider control and stability. Anti-lock Braking is included as a standard feature. Electronic Linked Braking distributes braking force between the front and rear wheels during braking events.
The Traction Control System monitors wheel speed and adjusts power delivery to maintain traction. The Drag-torque Slip Control System reduces rear-wheel slip during aggressive downshifting. Vehicle Hold Control maintains brake pressure to prevent movement when stopped on inclines.
The Tire Pressure Monitoring System provides feedback on tire pressure levels, allowing for timely adjustments. Cornering-enhanced systems include Cornering Anti-lock Braking, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-torque Slip Control. These systems adjust braking and traction response based on lean angle input, supporting stability during turning maneuvers.
Lean angle capability is measured at 32 degrees on both the left and right sides, supporting balanced cornering performance for a touring motorcycle of this size.
Fuel Efficiency and Operational Range
The 2026 Harley-Davidson® Road Glide® has an estimated fuel economy rating of 44 miles per gallon. This figure is based on combined city and highway conditions. The fuel capacity of 6 gallons supports extended riding distances between refueling stops.
The fuel system includes a reserve indicator, which alerts the rider when fuel levels are low. This feature supports planning for refueling during long-distance travel.
