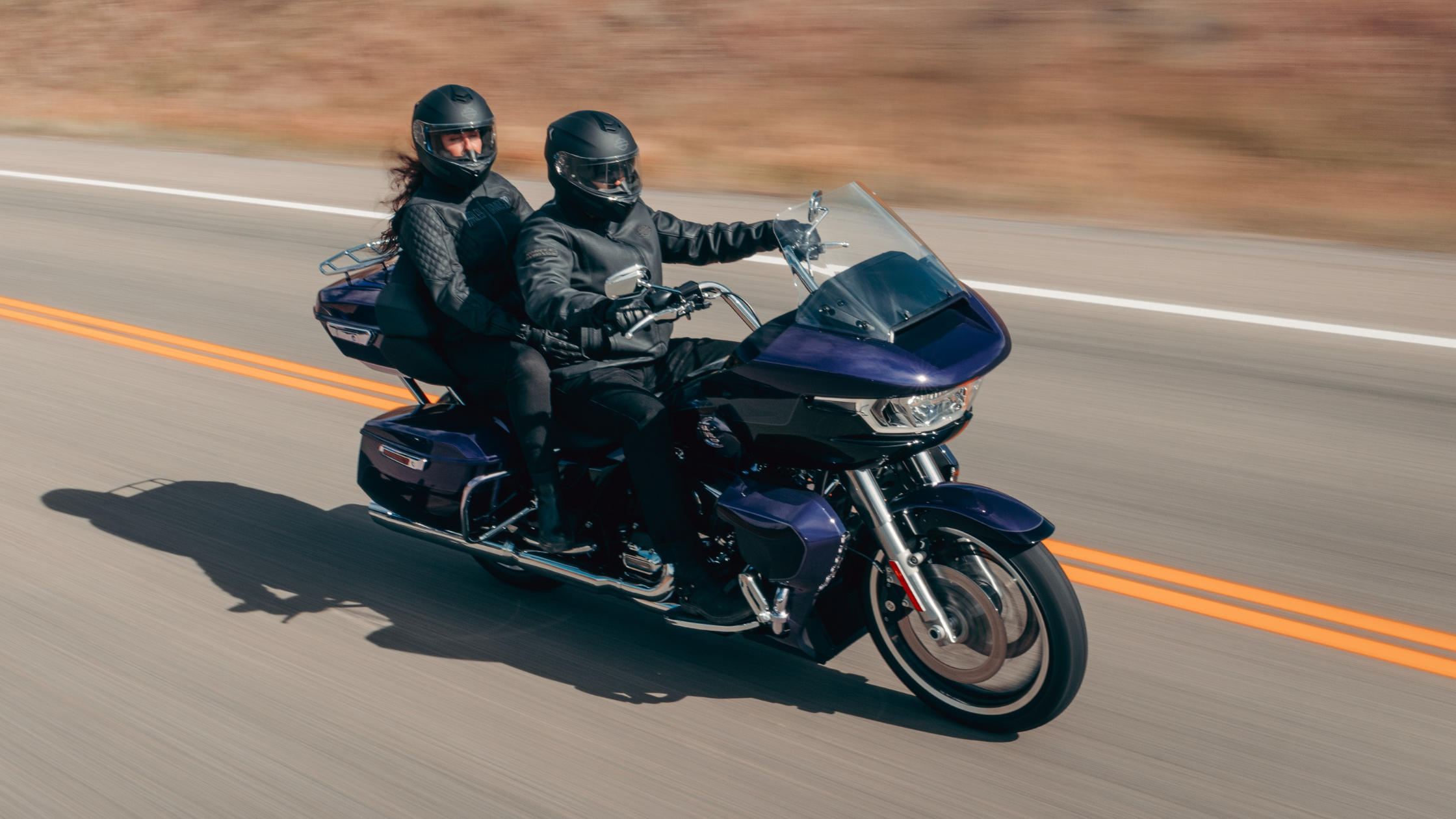

The 2026 Harley-Davidson® Road Glide® Limited is a full-size touring motorcycle engineered with a focus on mechanical consistency, integrated electronics, and long-distance functionality. The model measures 103.1 inches in length, 40.7 inches in width, and 57 inches in height, with a wheelbase of 64 inches. The steering geometry includes a 26-degree rake, a 29.25-degree fork angle, and 6.8 inches of trail. These figures contribute to stable directional control and predictable steering response at sustained highway speeds. Seat height is 27.5 inches when laden and 29 inches when unladen, while static ground clearance is 5.1 inches. These measurements indicate a low center of gravity and controlled rider reach for a motorcycle of this size.
The total weight in running order is 919 pounds, with a gross vehicle weight rating of 1,360 pounds. The front axle is rated at 500 pounds and the rear axle at 927 pounds. Fuel capacity is 6 gallons, with a 1-gallon reserve warning threshold. Oil capacity is 5 quarts, and additional system capacities include 1 quart for the transmission, 1.1 quarts for the primary chain case, and 0.82 quarts for coolant. The luggage compartment offers 5.05 cubic feet of storage volume, supporting extended travel requirements.
Milwaukee-Eight® VVT 117 Engine Configuration
The 2026 Harley-Davidson® Road Glide® Limited is equipped with the Milwaukee-Eight® VVT 117 engine. This engine has a displacement of 117 cubic inches, equivalent to 1,923 cubic centimeters. The bore measures 4.075 inches and the stroke measures 4.5 inches. The compression ratio is set at 10.3 to 1. The engine uses a pushrod-operated overhead valve system with hydraulic self-adjusting lifters and four valves per cylinder. This configuration supports consistent valve operation and reduced maintenance adjustments.
Fuel delivery is managed through Electronic Sequential Port Fuel Injection. The lubrication system is a pressurized dry-sump design, which maintains oil circulation stability under varying operating conditions. The intake system includes a washable fiberglass air cleaner. Exhaust is routed through a 2-1-2 dual system with tapered mufflers. The engine produces 131 foot-pounds of torque at 3,250 rpm and 106 horsepower at 4,600 rpm. Torque testing follows the J1349 standard. These output values indicate strong mid-range performance suited for sustained cruising and load-carrying conditions.
Transmission Ratios and Drivetrain Mechanics
The drivetrain includes a 6-Speed Cruise Drive® transmission. The primary drive uses a chain with a 34 to 46 ratio. Final drive is handled through a belt system with a 32 to 68 ratio. The clutch is a mechanically actuated 10-plate wet design with assist and slip functionality. This clutch configuration reduces lever effort and helps manage rear wheel behavior during deceleration.
The overall gear ratios are structured to support both initial acceleration and highway efficiency. First gear has a ratio of 9.593, followed by 6.65 in second, 4.938 in third, 4.0 in fourth, 3.407 in fifth, and 2.875 in sixth. These ratios indicate a gradual progression toward lower engine speed at higher gears, which supports consistent operation during long-distance riding. The drivetrain configuration is designed to balance torque delivery, rider control, and reduced engine strain at cruising speeds.
Frame Construction and Suspension Systems
The chassis uses a mild steel tubular frame with a two-piece stamped and welded backbone. It includes cast and forged junctions, twin down tubes, and a bolt-on rear frame with forged fender supports. The swingarm is also constructed from mild steel using a two-piece drawn and welded design with forged junctions. These materials and construction methods provide structural rigidity and support load distribution.
Front suspension is handled by a 49 mm Dual Bending Valve fork. Rear suspension consists of dual adjustable emulsion shocks with 3 inches of travel. The left rear shock includes remote preload adjustment, while the right shock uses threaded preload adjustment. Front suspension travel measures 4.6 inches. This suspension configuration supports load adaptability and maintains consistent ride height under varying weight conditions.
The 2026 Harley-Davidson® Road Glide® Limited uses cast aluminum wheels, with a 19-inch diameter at the front and 18 inches at the rear. The front wheel has a width of 3.5 inches, and the rear wheel measures 5 inches in width. Tire specifications include a 130/60B19 front tire and a 180/55B18 rear tire, both from the Dunlop® Harley-Davidson® Series. This setup contributes to traction consistency and controlled handling across highway surfaces.
Braking Components and Control Systems
The braking system includes dual front calipers with 32 mm four-piston fixed, axially mounted units and a single rear caliper. The front brake rotors are dual floating discs with a diameter of 12.6 inches and a thickness of 0.18 inches. The rear rotor is a fixed disc with a diameter of 11.8 inches and a thickness of 0.28 inches. This configuration provides balanced braking force distribution across both wheels.
The motorcycle includes Anti-lock Braking System as standard equipment. Additional braking and traction systems include Electronic Linked Braking, which distributes braking force between front and rear wheels, and Traction Control System, which manages wheel slip under acceleration. Drag-torque Slip Control System regulates rear wheel behavior during engine braking, and Vehicle Hold Control assists with maintaining position on inclines. The Tire Pressure Monitoring System provides continuous tire pressure data to the rider.
Cornering-enhanced systems are also included. These systems adjust braking and traction responses based on lean angle. The package includes a Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control, and Cornering Drag-torque Slip Control. These systems are calibrated to maintain stability during turning conditions.
Electrical System and Lighting Configuration
The electrical system includes a sealed, maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. Charging is managed by a three-phase, 58-amp system with a maximum output of 754 watts at 13 volts. The starting system uses a 1.6 kW electric starter with solenoid shift engagement. These specifications support consistent electrical performance and reliable starting under various conditions.
Lighting is fully LED-based. The headlamp, tail and stop lamp, front signal lights, and rear turn signals all use LED technology. Auxiliary lighting includes LED fog lamps integrated into the lower fairings. This lighting configuration provides consistent illumination and energy efficiency. The motorcycle also includes a USB-C power outlet rated at 15 watts within the media storage compartment, along with an additional accessory power port located in the Tour-Pak®. These features support device charging during operation.
Infotainment Interface and Connectivity Systems
The 2026 Harley-Davidson® Road Glide® Limited is equipped with the Skyline™ OS infotainment system. The interface is displayed on a 12.3-inch full-color TFT screen. Digital gauges are integrated into the display, providing consolidated access to vehicle data. The infotainment system includes four speakers, with two 6.5-inch speakers located in the fairing and two additional 6.5-inch speakers located in the Tour-Pak®. Each channel delivers 50 watts of output.
Audio features include AM and FM radio functionality. Media playback is supported through USB connections, including SD card, flash drive, and MP3 compatibility. Bluetooth® connectivity supports hands-free mobile phone use and media streaming. The system is compatible with Apple CarPlay® through both wireless and wired connections. Rider and passenger intercom functionality is available when paired with compatible headsets.
The 2026 Harley-Davidson® Road Glide® Limited includes an embedded navigation system with integrated traffic and weather data through a Wi-Fi connection. A vehicle information screen provides data such as air temperature, oil pressure, and engine idle temperature management system status. Text-to-speech capability is also supported. USB connectivity uses a USB-C interface located within the inner fairing storage compartment.
Fuel Efficiency and Operating Range
The estimated fuel economy for the 2026 Harley-Davidson® Road Glide® Limited is 45 miles per gallon based on combined city and highway testing. This efficiency level, combined with the 6-gallon fuel capacity, supports extended travel distance between refueling intervals. The reserve fuel indicator activates when approximately 1 gallon remains. These specifications provide predictable range performance for long-distance riding.
Performance Metrics and Lean Capability
The 2026 Harley-Davidson® Road Glide® Limited produces 131 foot-pounds of torque at 3,250 rpm and 106 horsepower at 4,600 rpm. These figures indicate strong torque availability at lower engine speeds, which supports acceleration and load-carrying capability. Lean angle is rated at 31 degrees on both the right and left sides. Lean angle testing follows SAE J1168 standards. These values indicate controlled cornering limits for a motorcycle in the touring category.
