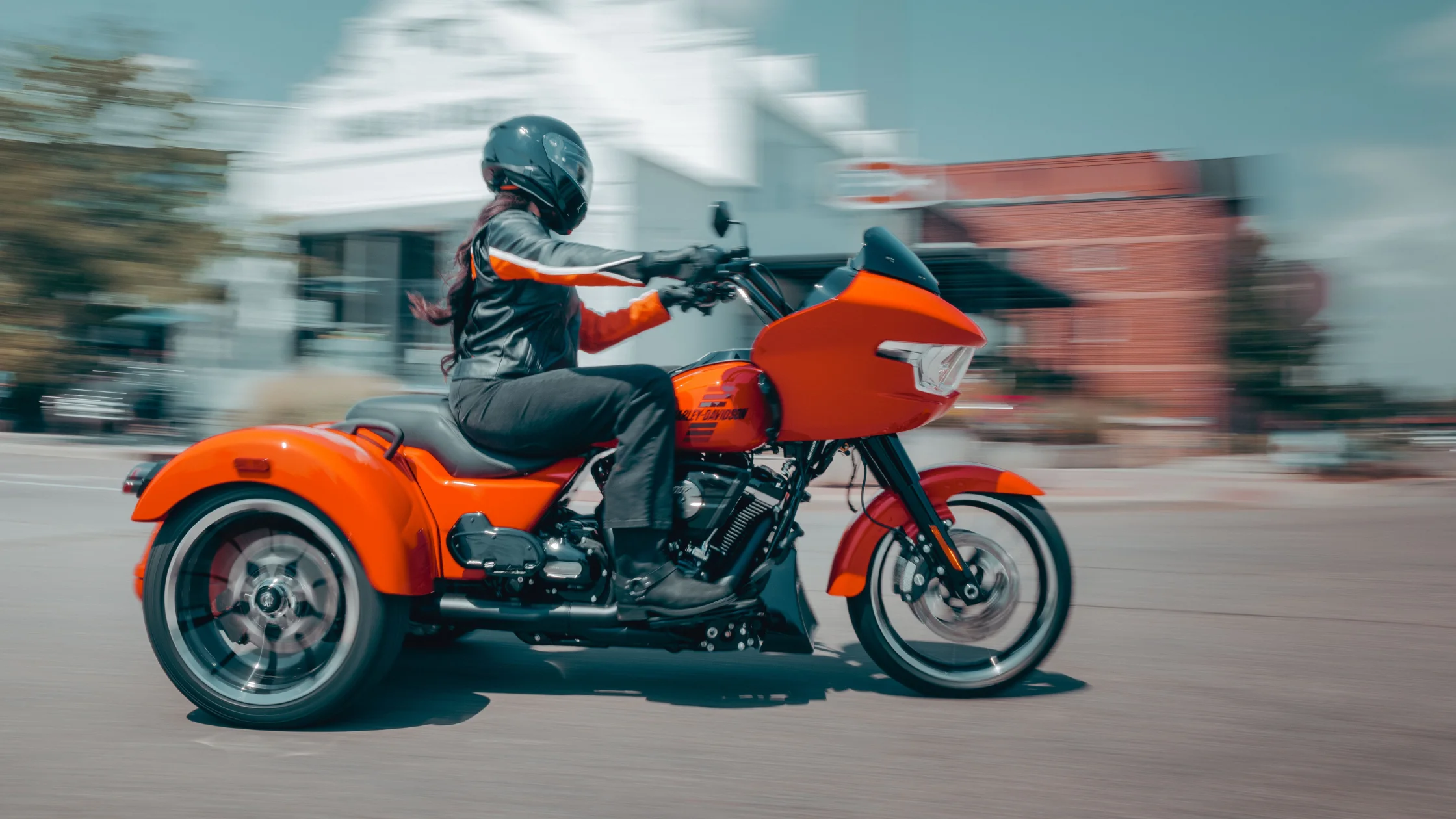

The 2026 Harley-Davidson® Road Glide® 3 is a three-wheel touring motorcycle engineered for long-distance riding, integrated technology, and high-output V-twin performance. The model combines a frame-mounted fairing, a Milwaukee-Eight® VVT 117 engine, electronic rider assistance systems, and a factory-installed infotainment platform within a trike configuration designed for highway stability and touring functionality. The motorcycle measures 103 inches in length, 57.5 inches in overall width, and 51.4 inches in overall height. A 67.7-inch wheelbase contributes to the platform’s extended touring stance and directional stability.
The 2026 Harley-Davidson® Road Glide® 3 uses a low seating position with a laden seat height of 26.5 inches and an unladen seat height of 27.9 inches. Static ground clearance measures 5.5 inches. The motorcycle has a running order weight of 1,184 pounds and a gross vehicle weight rating of 1,700 pounds. Harley-Davidson® equips the model with integrated storage, a 6-gallon fuel tank, electronic rider aids, and a six-speed transmission with reverse functionality.
Milwaukee-Eight® VVT 117 Engine Configuration
The 2026 Harley-Davidson® Road Glide® 3 is powered by the Milwaukee-Eight® VVT 117 engine. This powertrain has a displacement of 117 cubic inches, or 1,923 cc, with a bore of 4.075 inches and a stroke of 4.5 inches. The engine uses a 10.3:1 compression ratio and a pushrod-operated overhead valve configuration with hydraulic self-adjusting lifters and four valves per cylinder.
Variable Valve Timing technology supports the engine’s operating range across low- and mid-range rpm conditions. The engine produces 105 horsepower at 4,600 rpm and 129 ft-lb of torque at 3,250 rpm. Torque testing follows the J1349 standard. The combination of displacement and low-rpm torque output supports highway acceleration, sustained cruising performance, and loaded touring operation.
Electronic Sequential Port Fuel Injection manages fuel delivery. The fuel system works alongside a washable paper air cleaner and a pressurized dry-sump lubrication system. Exhaust routing uses a 2-1-2 dual exhaust configuration. The engine is calibrated for premium fuel with a recommended octane rating of 91 or higher.
Six-Speed Drivetrain and Reverse Operation
Harley-Davidson® pairs the Milwaukee-Eight® VVT 117 engine with a 6-Speed Cruise Drive® transmission. The transmission includes electric reverse, which is actuated through handlebar-mounted hand controls. This feature assists with low-speed maneuvering and parking operations on uneven surfaces or confined spaces.
The drivetrain uses a chain primary drive with a 34/46 ratio and a belt final drive with a 30/70 ratio. Clutch operation is handled by a mechanically actuated 10-plate wet Assist & Slip clutch system. This clutch configuration reduces rear wheel instability during aggressive downshifts while supporting smoother gear engagement.
The transmission gear ratios are calibrated for touring performance and low-speed operation. First gear uses a 10.534 overall ratio, while sixth gear uses a 3.000 ratio. Intermediate gearing progresses through 7.302 in second gear, 5.423 in third gear, 4.392 in fourth gear, and 3.742 in fifth gear. This ratio spread supports controlled acceleration from a stop and reduced engine speed during highway cruising.
Touring Chassis and Structural Engineering
The 2026 Harley-Davidson® Road Glide® 3 uses a mild steel frame with a square-section backbone and twin downtubes. The chassis is engineered to support the demands of a three-wheel touring platform while maintaining structural rigidity and load-carrying capability. A permanent mold-cast aluminum swingarm contributes to rear structural support and durability.
Front suspension consists of a 49 mm dual bending valve fork with 4.6 inches of travel. Rear suspension uses hand-adjustable emulsion shocks with 3.5 inches of travel. The adjustable rear suspension allows riders to compensate for passenger weight or luggage load changes.
The steering geometry includes a 26-degree rake, 32-degree fork angle, and 3.8 inches of trail. These dimensions contribute to steering response and directional stability during highway operation. The 2026 Harley-Davidson® Road Glide® 3 uses a trike-specific rear configuration that supports straight-line stability and controlled cornering behavior.
Wheel Design and Tire Specifications
Harley-Davidson® equips the 2026 Harley-Davidson® Road Glide® 3 with Gloss Black and Machined 5-spoke cast aluminum wheels. The front wheel measures 19 inches in diameter and 3.5 inches in width. The rear wheels measure 18 inches in diameter and 7 inches in width.
The front tire is a Dunlop® Harley-Davidson® Series D408F with MT 130/60B19 M/C 61H specification. Rear tire specification is P215/45R18 83T using the TK100 model. The front tire uses a bias blackwall construction, while the rear tires use radial blackwall construction. This tire combination is designed to support touring loads, front-end steering response, and rear traction characteristics associated with a three-wheel platform.
Braking Hardware and Integrated Rider Controls
The braking system uses dual floating front rotors and a fixed rear rotor. Front brake diameter measures 11.8 inches with a rotor thickness of 0.197 inches. The rear rotor also measures 11.8 inches in diameter with a thickness of 0.276 inches.
Front brake calipers use fixed four-piston, 32 mm construction. The rear brake system uses a floating 36 mm piston integrated park brake setup. Dual front braking hardware contributes to braking consistency and controlled deceleration during touring operation.
Anti-lock Braking System is standard equipment on the 2026 Harley-Davidson® Road Glide® 3. Electronic Linked Braking is also included. The linked braking system distributes braking force between the front and rear systems under specific riding conditions to improve braking balance and control.
Cornering Rider Safety Technology
The 2026 Harley-Davidson® Road Glide® 3 includes multiple rider assistance systems integrated into the chassis and braking architecture. Standard systems include the Traction Control System, Drag-torque Slip Control System, and Tire Pressure Monitoring System.
Cornering rider safety systems are also included. These systems consist of a Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, and Cornering Drag-Torque Slip Control System. These systems are calibrated to account for motorcycle dynamics during cornering and changing traction conditions.
The Traction Control System regulates rear-wheel spin during acceleration on reduced-traction surfaces. Drag-torque Slip Control System manages rear wheel slip during aggressive downshifts or rapid deceleration. The Tire Pressure Monitoring System provides continuous tire pressure monitoring information through the integrated display system.
Aerodynamics and Touring-Oriented Bodywork
The 2026 Harley-Davidson® Road Glide® 3 uses a frame-mounted fairing configuration. This design separates the fairing structure from direct handlebar movement and contributes to stable airflow management at highway speeds. The fairing also houses the integrated infotainment display and rider interface systems.
Lighting components use LED technology throughout the motorcycle. The headlamp, tail and stop lamp, front signal lights, and rear turn signals all use LED construction. LED lighting improves visibility while reducing electrical load compared to conventional lighting systems.
The 2026 Harley-Davidson® Road Glide® 3 includes integrated luggage storage with a total luggage capacity of 2 cubic feet. The platform is designed to support touring equipment and longer-distance travel requirements while maintaining cargo accessibility.
Skyline™ OS Infotainment Platform
The infotainment system on the 2026 Harley-Davidson® Road Glide® 3 uses Skyline™ OS operating architecture. The system features a 12.3-inch full-color TFT display integrated into the fairing assembly. Digital gauges are incorporated within the display layout to centralize vehicle information and rider controls.
The system includes AM and FM radio functionality along with USB media support for SD cards, flash drives, and MP3 playback. Audio output uses two 5.25-inch speakers with 50 watts per channel. Bluetooth® connectivity supports mobile phone integration, media playback, and headset pairing.
Wireless and wired Apple CarPlay® compatibility is included. USB-C and MTP smartphone compatibility are also supported through the inner fairing storage compartment connection. The motorcycle includes a 15-watt USB-C power outlet positioned within the media storage box.
The rider information screen displays vehicle data, including air temperature, oil pressure, and EITMS information. Rider and passenger intercom capability is available through compatible Harley-Davidson® headsets. Voice-operated communication support is also available with compatible headset equipment.
Embedded Navigation and Connectivity Systems
The 2026 Harley-Davidson® Road Glide® 3 includes an embedded GPS navigation system integrated within the Skyline™ OS platform. Navigation functionality includes traffic and weather integration through Wi-Fi hotspot connectivity where supported. The navigation display is incorporated directly into the TFT screen layout for centralized rider visibility.
Bluetooth® functionality supports headset communication, phone pairing, and media streaming. The infotainment platform also supports text-to-speech language integration consistent with the installed language package.
Integrated digital instrumentation allows riders to monitor operational data without separate analog gauges. This layout simplifies rider visibility and consolidates infotainment, navigation, and vehicle data into a single interface.
Electrical Capacity and Charging System
Electrical power is managed through a sealed maintenance-free 12-volt battery rated at 28 amp-hours and 405 cold cranking amps. The charging system uses a three-phase 48-amp configuration producing 600 watts at 13 volts and 2,000 rpm, with a maximum output of 625 watts at 13 volts.
The starter system uses a 1.6 kW electric starter with solenoid shift starter motor engagement. The electrical system supports operation of the infotainment system, integrated lighting, navigation hardware, charging ports, and rider assistance technology.
Fuel capacity measures six gallons with a one-gallon reserve warning threshold. Estimated fuel economy is rated at 39 mpg under city and highway testing conditions. Oil capacity measures 5 quarts with the filter installed. Transmission and primary chain case capacities each measure 1.1 quarts, while coolant capacity measures 0.82 quarts.
