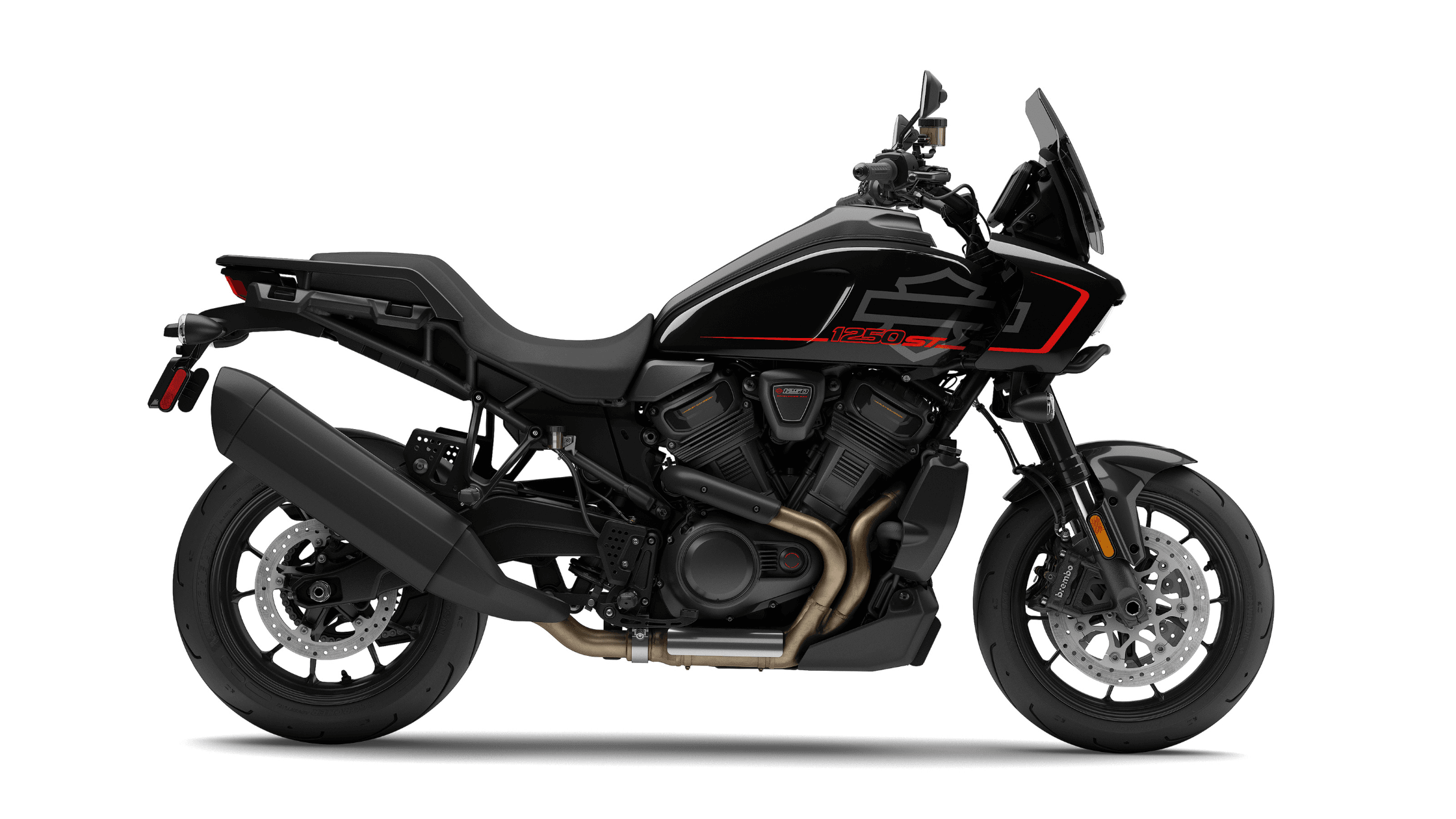

The 2026 Harley-Davidson® Pan America® 1250 ST is engineered as a performance-focused adventure-sport motorcycle with specifications emphasizing power delivery, chassis precision, electronic rider support, and integrated technology. The model uses a high-output Revolution® Max 1250 engine combined with a rigid structural chassis, electronically managed suspension components, and a comprehensive safety package. Its configuration reflects an emphasis on on-road handling, mechanical efficiency, and precise rider input. The motorcycle measures 88.2 inches in length, 35.3 inches in overall width, and 52.4 inches in height, with a wheelbase of 62.2 inches and a rake angle of 25 degrees. Ground clearance stands at 6.7 inches, supporting both stability and practical maneuverability. The design integrates sport-oriented wheels and tire specifications intended for controlled cornering performance and consistent grip on paved surfaces.
Engine Architecture and Performance Specifications
The 2026 Harley-Davidson® Pan America® 1250 ST uses the Revolution® Max 1250 engine, a liquid-cooled V-twin with a displacement of 1,252 cc. The engine incorporates chain-driven dual overhead camshafts and hydraulic self-adjusting lifters with variable valve timing on both intake and exhaust valves. Each cylinder contains four valves, improving airflow efficiency across the rpm range. Bore measures 4.134 inches, and the stroke measures 2.846 inches, supporting a high-revving design paired with a compression ratio of 13.0:1. These values indicate a performance-oriented engine calibration focused on strong output and efficient combustion.
Fuel delivery operates through an Electronic Sequential Port Fuel Injection system. This configuration supports accurate fuel metering and stable throttle response across varying riding conditions. Airflow management uses a downdraft intake with tuned velocity stacks and washable filter media, allowing efficient intake flow while supporting consistent performance maintenance. Exhaust routing follows a 2-into-1-into-1 layout with a catalyst located in the header assembly. The lubrication system uses a semi-dry sump design, which assists in maintaining oil control during aggressive riding angles and sustained high-speed operation.
Performance output is rated at 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. Torque measurements follow J1349 testing methodology, while lean angle testing follows J1168 standards. The motorcycle supports lean angles of 37 degrees on both the left and right sides, demonstrating the intended road-focused handling profile. Fuel economy is estimated at 46 mpg under combined city and highway testing conditions, supporting practical riding range while maintaining high-performance capability.
Transmission and Power Delivery Systems
Power transmission uses a six-speed gearbox designed to manage the engine’s high output while providing smooth transition between gears. The drivetrain uses a gear-driven primary system with a 49/89 ratio and a chain final drive with a 19/48 ratio. These ratios support quick acceleration while maintaining stable cruising performance in higher gears. The clutch system uses an eight-plate wet mechanical design featuring assist and slip functionality. This setup reduces lever effort and improves stability during downshifts by limiting rear wheel disturbance.
Gear ratios demonstrate a progressive spread designed for both responsive takeoff and sustained speed management. First gear is geared at 13.11, followed by second at 9.687, third at 7.509, fourth at 6.057, fifth at 5.08, and sixth at 4.436. The spacing promotes controlled acceleration while allowing smooth transitions through the rev range. The system emphasizes predictable engagement and mechanical reliability during varied riding conditions.
Frame Engineering and Structural Design
The frame structure uses a stressed-member configuration constructed from high-strength low-alloy steel arranged in a trellis layout. The frame integrates stamped, cast, and forged components connected through MIG welding. An aluminum forged mid-structure supports weight distribution and rigidity. This design allows the engine to serve as a structural element, reducing overall mass while maintaining stiffness for responsive handling.
A one-piece cast aluminum swingarm supports rear suspension geometry and contributes to precise wheel tracking during acceleration and braking. The motorcycle’s dimensions balance stability with agility, supported by a trail measurement of 3.7 inches and consistent steering geometry. The overall package aims to maintain predictable handling characteristics during rapid direction changes and sustained cornering.
The model rides on cast aluminum wheels finished in satin black, measuring 17 inches in diameter front and rear. Front wheel width is 3.5 inches, while the rear wheel width is 5.5 inches. Tire specifications include a 120/70ZR17 front tire and a 180/55ZR17 rear tire, both Michelin® Scorcher Sport models designed for strong pavement performance and controlled grip under lean.
Suspension Systems and Ride Control
The front suspension uses a 47 mm inverted fork equipped with electronically adjustable preload and manually adjustable compression and rebound damping. Aluminum fork triple clamps improve rigidity and steering precision. The rear suspension features a linkage-mounted monoshock with automatic electronic preload control combined with manual compression and rebound adjustments. This configuration allows the motorcycle to adapt to load conditions while giving riders direct control over damping response.
Suspension travel measures 6.7 inches at both the front and rear, supporting ride comfort while maintaining composure during aggressive road riding. The electronically controlled preload system manages ride height and balance when rider weight or cargo conditions change, contributing to consistent handling geometry. The suspension setup emphasizes controlled movement rather than excessive softness, supporting the motorcycle’s sport-oriented design intent.
Braking Systems and Mechanical Control
The braking system uses radially mounted monoblock four-piston calipers on the front wheel paired with dual floating rotors measuring 12.6 inches in diameter and 0.17 inches in thickness. Rear braking uses a floating single-piston caliper with an 11-inch rotor measuring 0.2 inches in thickness. The dual front rotor configuration improves braking force distribution and heat management during repeated deceleration events.
Anti-lock Braking System functionality is included as standard equipment. Electronic Linked Braking integrates front and rear brake operation to support stability during heavy braking. These systems aim to improve control consistency without reducing rider input. Combined with chassis rigidity and suspension stability, the braking hardware supports predictable deceleration behavior and balanced stopping performance.
Electrical Components and Lighting Technology
Electrical systems include a sealed maintenance-free absorbed glass mat battery rated at 12 volts, 17.5 amp-hours, and 310 cold cranking amps at 0°F. The charging system uses a three-phase 45-amp configuration, producing 390 watts at 13 volts and 1,300 rpm, with maximum output reaching 585 watts at 2,500 rpm. Starting functionality uses a 0.9 kW electric starter with direct-drive engagement.
Lighting components use full LED technology. The headlamp is a Daymaker® Adaptive LED unit designed to support improved illumination during cornering and varying road angles. Rear lighting includes an LED tail and stop lamp with signature lighting elements. Front and rear turn signals use LED bullet-style indicators. The lighting package is designed for improved durability and consistent visibility under different operating conditions.
Instrumentation, Connectivity, and Rider Interface
The motorcycle features a 6.8-inch TFT touchscreen display serving as the primary rider interface. The display includes speedometer, tachometer, gear position, odometer, trip functions, fuel level, clock, ambient temperature, range information, and cruise indication. Additional alerts include low-temperature notifications, side-stand warnings, and tip-over indicators. The interface prioritizes clear data presentation and direct visibility while riding.
Bluetooth® capability allows pairing with compatible mobile devices for phone communication, music playback, and navigation functions through the Harley-Davidson® mobile application. The infotainment layout does not include traditional audio speakers, focusing instead on headset-based communication and media access. USB-C connectivity supports charging and instrument updates, with outputs rated at 5V and up to 3A depending on function. Vehicle information screens include temperature monitoring, battery voltage, and tire pressure data.
Rider Safety Enhancement Systems
The 2026 Harley-Davidson® Pan America® 1250 ST includes multiple electronic safety systems intended to support stability under varying conditions. Standard systems include traction control, drag-torque slip control, vehicle hold control, tire pressure monitoring, and wheel lift mitigation. These systems continuously monitor operating conditions and adjust system behavior to maintain traction and control.
Cornering-enhanced safety features expand these capabilities by integrating lean-angle data. Cornering Enhanced ABS, Cornering Electronic Linked Braking, Cornering Traction Control, and Cornering Drag-Torque Slip Control adjust system responses while the motorcycle is leaned into a turn. Enhanced Lift Mitigation adds additional control during abrupt acceleration scenarios. These systems are designed to function in the background while preserving direct rider control and predictable mechanical feedback.
