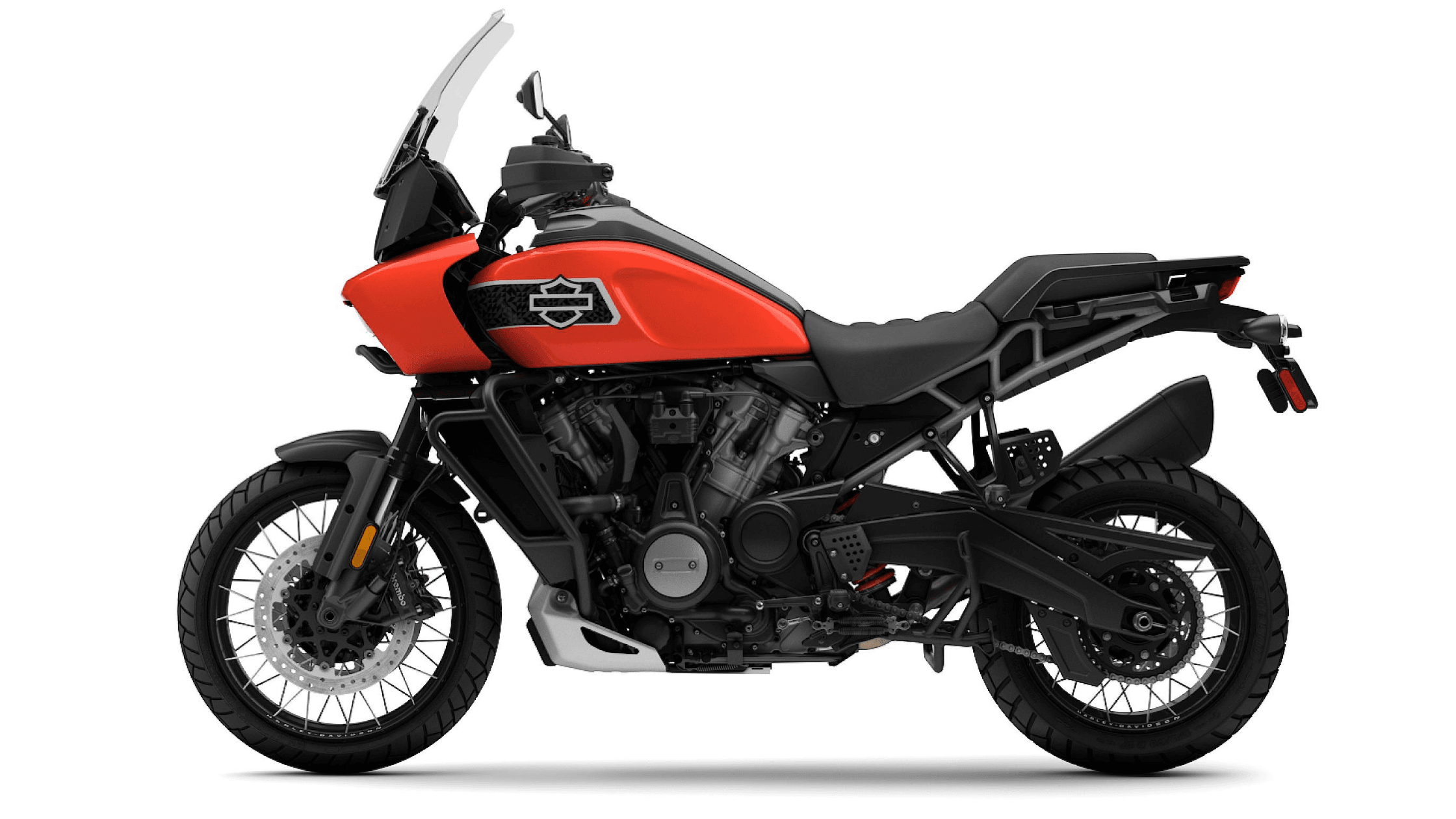

The 2026 Harley-Davidson® Pan America® 1250 Special is engineered as an adventure-focused motorcycle designed for riders who require balanced on-road and off-road capability supported by advanced mechanical and electronic systems. Its design integrates performance-oriented engineering, adaptive chassis technology, and a structured rider assistance package. The model combines high-output engine performance with an electronically managed suspension system, allowing riders to maintain stability and control across varying terrain conditions. Every mechanical and electronic component serves a functional purpose, resulting in a motorcycle that emphasizes measurable performance outcomes rather than stylistic emphasis.
The frame geometry, powertrain layout, and chassis components are configured to support predictable handling and consistent rider feedback. Dimensions, wheel sizes, and suspension travel have been selected to maintain ground clearance while supporting comfort during long-distance travel. The model also integrates modern connectivity and display technology, enabling riders to monitor vehicle information through a centralized digital interface. This article focuses exclusively on technical specifications and operational features to present a clear understanding of the model’s engineering design.
Engine Architecture and Performance Output
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine, a liquid-cooled V-twin with a displacement of 1,252 cc. The engine employs chain-driven dual overhead camshafts with hydraulic self-adjusting lifters. Variable valve timing is implemented on both intake and exhaust sides to optimize efficiency and performance across the RPM range. This configuration supports consistent combustion management and improved throttle response under varying load conditions.
Engine dimensions include a bore measuring 4.134 inches and a stroke of 2.846 inches. A compression ratio of 13.0:1 contributes to efficient power production while maintaining high performance potential. Output figures indicate 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. The torque delivery supports strong midrange acceleration, allowing controlled power application during highway riding and technical terrain navigation.
Fuel delivery is handled through Electronic Sequential Port Fuel Injection, which improves combustion precision and response consistency. The intake system incorporates a downdraft design with tuned velocity stacks and a washable filter medium to enhance airflow efficiency and simplify maintenance. Exhaust routing follows a 2-into-1-into-1 design with an integrated catalytic component positioned within the header. Lubrication is supported by a semi-dry sump system designed to maintain oil distribution during aggressive cornering or uneven riding surfaces.
Transmission and Drivetrain Configuration
Power from the Revolution® Max 1250 engine transfers through a six-speed transmission. Gear ratios are calibrated to provide low-speed control while maintaining reduced engine load at highway speeds. First gear is configured for effective launch performance and control at reduced speeds, while higher gears support sustained travel and efficient power delivery.
The clutch uses a mechanical eight-plate wet design with assist and slip functionality. This system reduces clutch lever effort while minimizing rear wheel instability during aggressive downshifts. Riders benefit from smoother gear changes and improved stability during rapid deceleration. The primary drive uses a gear-based system with a 49/89 ratio that contributes to direct and efficient power transfer.
Final drive duties rely on a chain system configured at a 19/48 ratio. Chain drive selection supports durability and responsive power application, which is suitable for mixed-surface riding environments. The drivetrain layout contributes to predictable throttle behavior and consistent acceleration under varying riding conditions.
Chassis Structure and Suspension Technology
The chassis employs a stressed-member high-strength low-alloy steel trellis frame combined with stamped, cast, and forged junctions. Aluminum-forged mid-structure components reduce mass while maintaining structural integrity. This arrangement improves rigidity and handling precision by distributing forces efficiently throughout the frame.
Front suspension consists of a 47 mm inverted fork equipped with electronically adjustable semi-active damping control. The damping system automatically adjusts based on riding inputs and terrain conditions, assisting with stability during braking and cornering. An optional Adaptive Ride Height system is available, allowing automatic adjustment of ride height during stops to improve rider accessibility while restoring full ground clearance during motion.
The rear suspension uses a linkage-mounted monoshock with automatic electronic preload control combined with semi-active compression and rebound damping. This system adjusts according to load changes, helping maintain consistent geometry and rider comfort. Suspension travel measures 7.5 inches at both front and rear, supporting controlled movement over uneven terrain while maintaining on-road composure.
The swingarm is a one-piece cast aluminum component designed for rigidity and reduced weight. Wheel configurations include a 19-inch front wheel and a 17-inch rear wheel in cast aluminum form. Michelin® Scorcher Adventure radial tires are fitted, with sizes 120/70R19 at the front and 170/60R17 at the rear. The wheel and tire combination supports traction, stability, and predictable steering characteristics.
Dimensional Specifications and Rider Ergonomics
The overall length of the motorcycle measures 89.4 inches, with a wheelbase of 62.4 inches. Width is recorded at 38.4 inches, and overall height measures 59.4 inches. Steering geometry includes a rake angle of 25 degrees and a trail measurement of 4.3 inches. These dimensions contribute to balanced steering behavior and stability at higher speeds.
Seat height is adjustable, with laden measurements ranging from 31.1 inches in the low position to 32 inches in the high position. Optional Adaptive Ride Height configurations reduce seat height further for improved reach to the ground during stops. Unladen seat height ranges from 33.4 to 34.4 inches depending on adjustment. These configurations allow riders to modify ergonomic positioning to suit riding conditions and personal comfort requirements.
Ground clearance measures 6.9 inches in standard configuration, increasing to 8.1 inches with Adaptive Ride Height equipped. Fuel capacity is rated at 5.6 gallons, while the reserve fuel warning activates at approximately 1 gallon. Running order weight is listed at 578 pounds, balancing durability with manageable handling characteristics.
Braking Components and Handling Control
Braking performance is supported by a dual front rotor system paired with radially mounted monoblock four-piston calipers. Each front rotor measures 12.6 inches in diameter with a thickness of 0.17 inches. The rear braking system uses a single-piston floating caliper with an 11-inch rotor measuring 0.2 inches thick. The configuration provides controlled stopping performance and consistent braking feel across varying conditions.
Standard Anti-lock Braking System functionality assists in maintaining traction during rapid deceleration. The braking system integrates with electronic control technologies to optimize stopping stability during cornering and uneven terrain riding. Lean angles are measured at 42 degrees on both the left and right sides, reflecting chassis stability and tire contact control during cornering.
Electrical Systems and Lighting Technology
Electrical support is provided by a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours, producing 310 cold-cranking amps at 0°F. Charging capabilities come from a three-phase 45-amp system capable of generating up to 585 watts at 2,500 rpm. Starting performance is supported by a 0.9 kW electric starter motor with direct drive engagement.
Lighting systems include a Daymaker® Adaptive LED headlamp with six-segment LED banking lights that improve visibility during lean angles. Tail and stop lights use LED technology with signature lighting elements. Front and rear turn signals are LED bullet-style units designed for clear visibility in varied lighting conditions.
A USB-C power outlet provides charging output at 5 volts and 2.4 amps, supporting external device charging during travel. Instrument updates and charging capabilities are integrated through the same connection interface.
Digital Display and Technology Integration
Rider information is displayed through a 6.8-inch color TFT touchscreen interface. The display presents speedometer data, gear position, odometer readings, fuel level, ambient temperature, trip data, and tachometer information. Additional alerts include side stand status, low temperature indication, tip-over alerts, range estimation, and cruise control status.
Bluetooth® connectivity enables phone pairing for calls, media, and navigation support through the Harley-Davidson® mobile application. Headset compatibility allows rider and passenger intercom functionality when equipped. Vehicle information displayed includes tire pressure monitoring, engine temperature, battery voltage, and ambient air temperature data. Navigation functionality operates through Bluetooth® connection to compatible applications.
Fuel economy is estimated at 46 mpg, supporting extended riding distances between refueling intervals.
Rider Safety Enhancement Systems
The motorcycle incorporates multiple electronic safety systems designed to assist rider control under changing conditions. Standard systems include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These features operate through sensor input to adjust braking and engine output response based on riding conditions.
Cornering-specific enhancements extend system functionality during lean angles. Cornering Enhanced Anti-lock Braking, Cornering Electronic Linked Braking, Cornering Traction Control, Cornering Drag-Torque Slip Control, and Enhanced Lift Mitigation support stability while turning. These systems work continuously to assist traction management and help reduce unintended loss of control during aggressive maneuvers or abrupt rider inputs.
