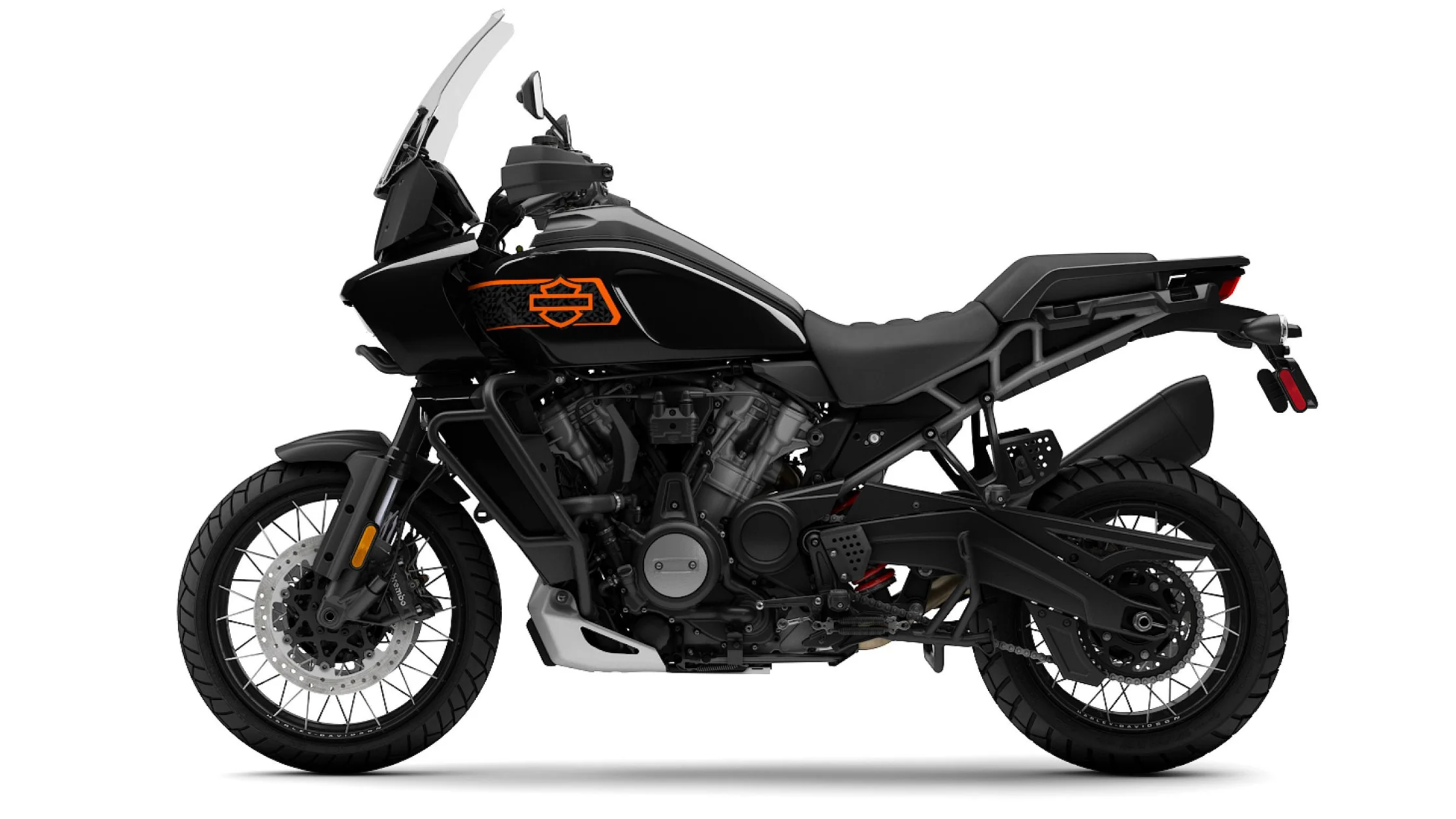

The 2026 Harley-Davidson® Pan America® 1250 Special is designed as an adventure-touring motorcycle with a focus on engine efficiency, adaptive suspension systems, electronic rider assistance, and long-distance capability. The model combines a liquid-cooled Revolution® Max 1250 engine with electronically controlled chassis components, cornering rider safety enhancements, and integrated connectivity systems. Its specifications support highway touring, uneven terrain operation, and extended-distance riding through a combination of structural engineering, electronic management systems, and adjustable ergonomics.
The motorcycle measures 89.4 inches in length, 38.4 inches in width, and 59.4 inches in height. It uses a 62.4-inch wheelbase, a 25-degree rake angle, and 4.3 inches of trail. These measurements contribute to directional stability and steering response during highway travel and cornering transitions. The running-order weight is listed at 578 pounds, while the gross vehicle weight rating reaches 1,003 pounds.
Revolution® Max 1250 Engine Configuration
The 2026 Harley-Davidson® Pan America® 1250 Special uses the Revolution® Max 1250 engine platform with a displacement of 1,252 cc, or 76.4 cubic inches. The engine uses dual overhead camshafts with chain-driven operation and hydraulic self-adjusting lifters. Harley-Davidson® integrates variable valve timing on both the intake and exhaust sides to manage airflow and combustion efficiency throughout the rev range.
The engine has a bore measurement of 4.134 inches and a stroke measurement of 2.846 inches. Compression ratio is rated at 13.0:1. Fuel delivery is handled through Electronic Sequential Port Fuel Injection. The induction system uses a downdraft intake layout combined with tuned velocity stacks and washable filter media. This intake arrangement supports consistent airflow and throttle response during acceleration and sustained cruising.
The engine produces 150 horsepower at 8,750 rpm and 94 ft-lb of torque at 6,750 rpm. These figures provide strong acceleration characteristics for loaded touring and higher-speed passing performance. The lubrication system uses a semi-dry sump arrangement, which assists with oil management during steep lean angles and changing terrain conditions.
Exhaust flow is managed through a 2-into-1-into-1 exhaust configuration with a catalyst integrated into the header assembly. The motorcycle is engineered for use with 91-octane or higher fuel.
Six-Speed Transmission and Final Drive Structure
The drivetrain of the 2026 Harley-Davidson® Pan America® 1250 Special uses a 6-speed transmission paired with a gear-driven primary drive and chain final drive system. The primary drive ratio is listed at 49/89, while the chain final drive ratio is 19/48. This drivetrain arrangement supports durability and direct power transfer under varying riding loads.
The clutch assembly uses a mechanical eight-plate wet clutch design with assist-and-slip functionality. This system reduces clutch lever effort while also limiting rear-wheel instability during aggressive downshifts. Gear ratios are configured to support low-speed maneuverability and highway-speed efficiency. First gear uses an overall ratio of 13.11, while sixth gear uses an overall ratio of 4.436.
The transmission layout allows the motorcycle to maintain controlled operation during slower technical riding while also reducing engine strain at sustained highway speeds.
Adventure-Focused Frame and Chassis Engineering
The frame uses a stressed-member design built from high-strength low-alloy steel. Harley-Davidson® combines stamped, cast, and forged junctions with MIG-welded construction techniques. The motorcycle also uses an aluminum forged mid-structure that contributes to chassis rigidity and weight distribution.
The swingarm uses a one-piece cast aluminum construction. This design increases structural stiffness while supporting rear suspension response during acceleration and uneven surface operation.
Ground clearance measurements vary depending on suspension configuration. Standard static ground clearance measures 6.9 inches. Models equipped with Adaptive Ride Height increase static ground clearance to 8.1 inches. Dynamic ground clearance with the optional suspension remains at 6.9 inches.
Seat height measurements also vary according to configuration. Laden seat height ranges from 31.1 inches in the low seat position to 32 inches in the high seat position. Models equipped with Adaptive Ride Height reduce those measurements to 30.4 inches and 31.4 inches, respectively. Unladen seat height ranges from 33.4 inches to 34.4 inches in the standard configuration.
These dimensional adjustments allow riders to manage reach to the ground while maintaining suspension travel and terrain capability.
Electronically Managed Suspension Systems
The front suspension uses a 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps support the assembly. The optional front suspension configuration includes Adaptive Ride Height functionality integrated into the electronically controlled damping system.
Rear suspension duties are managed through a linkage-mounted monoshock with automatic electronic preload control and semi-active compression and rebound damping adjustment. An optional rear shock configuration adds Adaptive Ride Height functionality.
Front and rear suspension travel are both measured at 7.5 inches. This travel range supports impact absorption and chassis stability on uneven surfaces, gravel roads, and pavement transitions.
The electronic suspension management system continuously adjusts damping characteristics based on operating conditions. Automatic preload control also assists with maintaining balanced chassis behavior when passenger weight or cargo load changes.
Wheel Construction and Tire Specifications
The 2026 Harley-Davidson® Pan America® 1250 Special uses Michelin® Scorcher “Adventure” radial tires. The front tire specification is 120/70R19 60V, while the rear tire specification is 170/60R17 72V. This wheel and tire arrangement is commonly used in adventure-touring motorcycles due to its balance between on-road handling and off-pavement capability.
Standard front and rear wheels use satin-black aluminum cast construction. The front wheel measures 19 inches in diameter and 3 inches in width. The rear wheel measures 17 inches in diameter and 4.5 inches in width.
Harley-Davidson® also lists optional anodized aluminum tubeless laced wheels for riders seeking an alternate wheel configuration. Tire and wheel dimensions support traction management and directional control during changing surface conditions.
Braking Components and Lean-Angle Capability
The front braking system uses dual floating tower-mounted brake rotors with radially mounted monoblock four-piston calipers. Front brake rotor diameter measures 12.6 inches with a thickness of 0.17 inches.
The rear braking system uses a solid uniform expansion rotor paired with a floating single-piston caliper. Rear rotor diameter measures 11 inches with a thickness of 0.2 inches.
Anti-lock braking functionality is standard equipment on the motorcycle. Lean-angle measurements are rated at 42 degrees on both the left and right sides. These measurements support stable cornering capability during pavement operation.
The braking system is integrated with electronic rider safety systems that manage braking force and traction response during changing riding conditions.
Rider Safety Enhancement Technologies
The 2026 Harley-Davidson® Pan America® 1250 Special includes multiple electronically controlled rider safety systems. Standard systems include Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation.
The motorcycle also includes cornering-enhanced safety technologies. These systems use vehicle data and lean-angle input to adjust braking and traction interventions during cornering operation.
Cornering safety features include the Cornering Enhanced Anti-lock Braking System, Cornering Enhanced Electronic Linked Braking, Cornering Enhanced Traction Control System, Cornering Drag-torque Slip Control System, and Enhanced Lift Mitigation.
Vehicle Hold Control assists with maintaining brake pressure during hill starts. The Tire Pressure Monitoring System continuously reports tire pressure information through the instrument display. Wheel Lift Mitigation and traction management systems regulate power delivery during acceleration events.
These systems are integrated into the motorcycle’s electronic management architecture to support rider control across changing surfaces and operating conditions.
LED Lighting and Electrical Output
The 2026 Harley-Davidson® Pan America® 1250 Special uses a Daymaker® Adaptive LED headlamp with a six-segment LED banking lamp system. This lighting arrangement adjusts illumination characteristics during lean-angle transitions to improve visibility during cornering.
The rear lighting system uses an all-LED tail and stop lamp assembly with signature lighting elements. Front and rear turn signals use LED bullet-style lighting units.
Electrical power is supplied through a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. Cold cranking output is listed at 310 CCA at 0°F.
Charging functions are managed through a three-phase 45-amp system producing 390 watts at 13 volts and 1,300 rpm, with maximum output reaching 585 watts at 13 volts and 2,500 rpm.
The 2026 Harley-Davidson® Pan America® 1250 Special uses a 0.9 kW electric starter system with direct-drive starter motor engagement.
TFT Display and Connectivity Functions
Instrumentation is managed through a 6.8-inch color TFT touchscreen display with a 173 mm viewable area. The display provides a speedometer, gear position, odometer, fuel level, clock, trip data, tachometer indication, cruise information, and range estimation.
Additional vehicle information displayed includes ambient air temperature, battery voltage, engine temperature, Tire Pressure Monitoring System data, low-temperature alerts, side-stand-down alerts, and tip-over alerts.
Bluetooth® functionality supports phone pairing for calls and media operation. Navigation capability is available through the H-D Mobile App. The motorcycle also supports Bluetooth® headset functionality for rider and passenger communication use.
USB-C charging and instrument update capability are included through a USB-C outlet rated at 5V and 3A. An additional electric power outlet provides 5V output at 2.4 amps.
The infotainment system architecture is focused on vehicle information access, communication integration, and navigation support through connected mobile devices.
Fuel Capacity and Touring Range Characteristics
Fuel capacity is rated at 5.6 gallons with a reserve fuel warning capacity of 1 gallon. Harley-Davidson® lists estimated fuel economy at 46 mpg under estimated city and highway testing conditions.
Oil capacity with filter replacement measures 4.75 quarts, while coolant capacity measures 2.32 quarts. These capacities support long-distance operation and thermal management during sustained riding conditions.
The 2026 Harley-Davidson® Pan America® 1250 Special is engineered to balance touring range, engine performance, and weight distribution through its fuel system and chassis layout.
