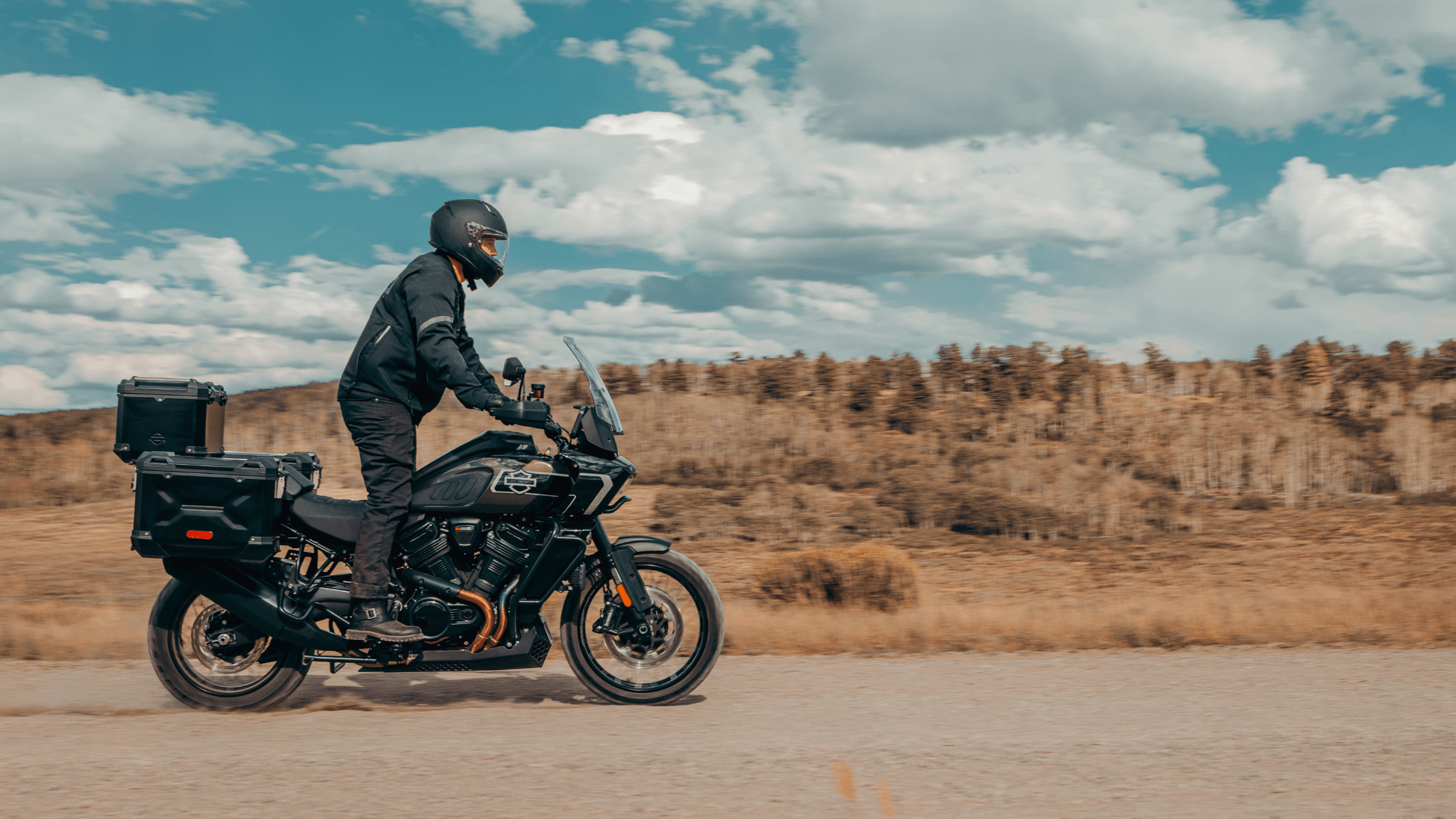

The 2026 Harley-Davidson® Pan America® 1250 Limited is engineered as an adventure touring motorcycle designed around measurable performance, integrated electronic systems, and structurally efficient construction. The model combines high-output engine architecture, electronically controlled suspension, advanced braking systems, and a comprehensive digital interface intended to support long-distance riding and variable terrain. Its engineering direction focuses on balancing power delivery, chassis rigidity, and rider assistance technologies while maintaining predictable handling characteristics. The motorcycle incorporates precise dimensional planning, optimized weight distribution, and advanced electronic control systems that influence stability, comfort, and operational consistency. Every specification reflects a purpose-driven design based on performance capability and rider control.
Engine Architecture and Performance Engineering
The 2026 Harley-Davidson® Pan America® 1250 Limited uses the Revolution® Max 1250 engine, a liquid-cooled V-twin with a displacement of 1,252 cc or 76.4 cubic inches. The design includes chain-driven dual overhead camshafts and hydraulic self-adjusting lifters combined with variable valve timing on both intake and exhaust sides. Four valves per cylinder improve airflow efficiency and combustion control. The bore measures 4.134 inches, while the stroke measures 2.846 inches, producing a short-stroke configuration that supports higher engine speeds and responsive output. The compression ratio is rated at 13.0:1, contributing to efficient combustion and strong performance throughout the rev range.
Fuel delivery operates through Electronic Sequential Port Fuel Injection, providing precise fuel metering based on throttle input and operating conditions. The intake system uses a downdraft configuration with tuned velocity stacks and washable filter media to optimize airflow into the combustion chambers. Exhaust routing is configured as a 2-into-1-into-1 system with an integrated catalyst located in the header. Lubrication relies on a semi-dry sump design, supporting consistent oil control during varied riding angles and terrain transitions.
Performance output is rated at 150 horsepower at 8,750 rpm. Engine torque reaches 94 ft-lb at 6,750 rpm. These figures indicate a powerband designed for both acceleration and sustained touring performance. The engine torque testing method follows J1349 standards, providing consistent measurement conditions. The combination of horsepower and torque supports strong midrange response and sustained high-speed operation while maintaining mechanical stability.
Transmission and Drivetrain Functionality
The drivetrain system integrates a six-speed transmission paired with a mechanical assist-and-slip clutch. The clutch uses an eight-plate wet design with assist functionality that reduces lever effort and slip control that stabilizes rear wheel behavior during aggressive downshifts. Gear ratios are configured to deliver progressive acceleration and controlled cruising efficiency. The overall ratios are 13.11 in first gear, 9.687 in second, 7.509 in third, 6.057 in fourth, 5.08 in fifth, and 4.436 in sixth, allowing smooth transition from low-speed technical riding to highway travel.
Primary drive operation uses a gear system with a 49/89 ratio, while final drive power is transmitted through a chain with a 19/48 ratio. This configuration supports durability and straightforward maintenance. The drivetrain design emphasizes predictable power transfer and consistent rider control across changing load conditions. Clutch engagement remains stable during repeated shifts, contributing to controlled acceleration and deceleration behavior.
Structural Design and Chassis Configuration
The chassis uses a stressed-member frame concept where the engine serves as a structural component, reducing overall mass while improving rigidity. The frame consists of high-strength low-alloy steel arranged in a trellis structure with stamped, cast, and forged junctions connected through precision welding processes. An aluminum forged mid-structure contributes to stiffness and reduced weight. The swingarm is a single-piece cast aluminum unit designed to support rear suspension loads while maintaining alignment under acceleration.
Dimensions influence both stability and maneuverability. The overall length measures 92.3 inches, with a width of 43.1 inches and a height of 59.4 inches. The wheelbase measures 62.2 inches, supporting straight-line stability during highway riding. Steering geometry includes a 25-degree rake and 4.3 inches of trail. This arrangement provides balanced steering response while maintaining directional stability at higher speeds. Ground clearance is rated at 7.1 inches in standard configuration, with reduced clearance figures when Adaptive Ride Height equipment is installed.
The weight in running order is listed at 661 pounds, while the shipping weight is 626 pounds. Gross vehicle weight rating reaches 1,034 pounds, with separate axle ratings assigned to front and rear assemblies. The chassis layout supports luggage capacity totaling 4.24 cubic feet, enabling functional storage without compromising handling balance.
Suspension Systems and Adaptive Ride Height Technology
Suspension design emphasizes electronically controlled adjustment to accommodate changing terrain and rider input. The front suspension consists of a 47 mm inverted fork equipped with electronically adjustable semi-active damping control. Aluminum triple clamps support precise steering alignment and structural stiffness. Rear suspension uses a linkage-mounted monoshock featuring automatic electronic preload control and semi-active compression and rebound damping.
Optional Adaptive Ride Height technology modifies suspension height dynamically, lowering the motorcycle during stops to improve accessibility and returning to riding height when in motion. This system influences rider confidence during low-speed maneuvers while maintaining suspension travel for performance riding. Suspension travel measures 7.5 inches at both front and rear, supporting absorption of uneven surfaces while retaining controlled chassis movement.
The suspension system continuously adjusts damping characteristics based on riding inputs, maintaining balanced handling across varying surfaces. Electronic control functions support stability during acceleration, braking, and cornering transitions.
Wheel, Tire, and Braking Engineering
Wheel construction includes aluminum cast wheels finished in satin black, with optional anodized aluminum tubeless laced wheels available depending on region. Front wheel diameter is 19 inches with a width of 3 inches, while the rear wheel measures 17 inches in diameter with a width of 4.5 inches. Tire selection uses Michelin® Scorcher Adventure radial tires, sized 120/70R19 at the front and 170/60R17 at the rear.
The braking system combines mechanical strength with electronic regulation. Front braking uses dual floating rotors measuring 12.6 inches in diameter paired with radially mounted monoblock four-piston calipers. The rear brake includes a single 11-inch rotor with a floating single-piston caliper. Anti-lock Braking System functionality is standard, supporting controlled deceleration under varying traction conditions. The Electronic Linked Braking distributes braking force between front and rear wheels to maintain stability. Rotor thickness and caliper design support consistent heat management during repeated braking events.
Lean angle capability reaches 42 degrees on both sides, reflecting chassis and tire compatibility with aggressive cornering while maintaining traction performance.
Electrical System and Illumination Technology
Electrical infrastructure relies on a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 Ah with 310 cold cranking amps. Charging is managed through a three-phase 45-amp system producing up to 585 watts at higher engine speeds. Starting functionality uses a 0.9 kW electric starter with direct drive engagement.
Lighting systems are fully LED-based. The headlamp uses a Daymaker® Adaptive LED unit with six-segment banking lamps designed to improve illumination during cornering. Tail and stop lighting features LED technology with signature lighting characteristics. Front and rear signals use LED bullet indicators for visibility. Auxiliary fog lamps and driving beams enhance forward lighting coverage in reduced-visibility conditions. Electrical power outlets include USB-C connectivity rated at 5 volts and 2.4 amps for accessory charging.
Display and Digital Integration Systems
The instrument interface consists of a 6.8-inch color TFT touchscreen display. The screen presents speedometer data, gear position, odometer readings, fuel level, clock, trip information, ambient temperature, range estimation, cruise status, and tachometer indication. The system includes alerts for low temperatures, side stand position, and tip-over detection. Bluetooth® integration supports phone pairing for calls, media playback, and navigation via the Harley-Davidson® mobile application.
Vehicle information screens display metrics such as tire pressure monitoring, engine temperature, battery voltage, and ambient air temperature. USB-C connectivity allows charging and instrument updates. Infotainment hardware does not include integrated speakers, focusing instead on display-based functionality and headset compatibility through Bluetooth® connections.
Rider Safety Enhancements and Electronic Control Systems
The 2026 Harley-Davidson® Pan America® 1250 Limited includes multiple electronic safety systems designed to assist rider control. Standard rider safety features consist of Anti-lock Braking System, Electronic Linked Braking, Traction Control System, Drag-Torque Slip Control System, Vehicle Hold Control, Tire Pressure Monitoring System, and Wheel Lift Mitigation. These systems monitor wheel speed, throttle position, and chassis dynamics to regulate traction and stability.
Cornering-enhanced versions of braking and traction control systems provide additional support during lean-angle operation. Cornering ABS, cornering electronic linked braking, cornering traction control, cornering drag-torque slip control, and enhanced lift mitigation adjust system response based on vehicle lean angle. These integrations contribute to controlled handling during braking and acceleration while cornering, maintaining balance across different surface conditions.
Technical Ride Specifications and Operational Efficiency
Fuel capacity totals 5.6 gallons, with a reserve warning equivalent to approximately 1 gallon. Fuel economy is estimated at 46 mpg under combined city and highway testing conditions. Oil capacity measures 4.75 quarts, while coolant capacity is listed at 2.32 quarts. These figures support extended riding intervals and thermal stability during sustained operation. The combination of fuel efficiency, engine performance, and luggage volume supports long-distance touring applications without compromising mechanical balance or operating consistency.
