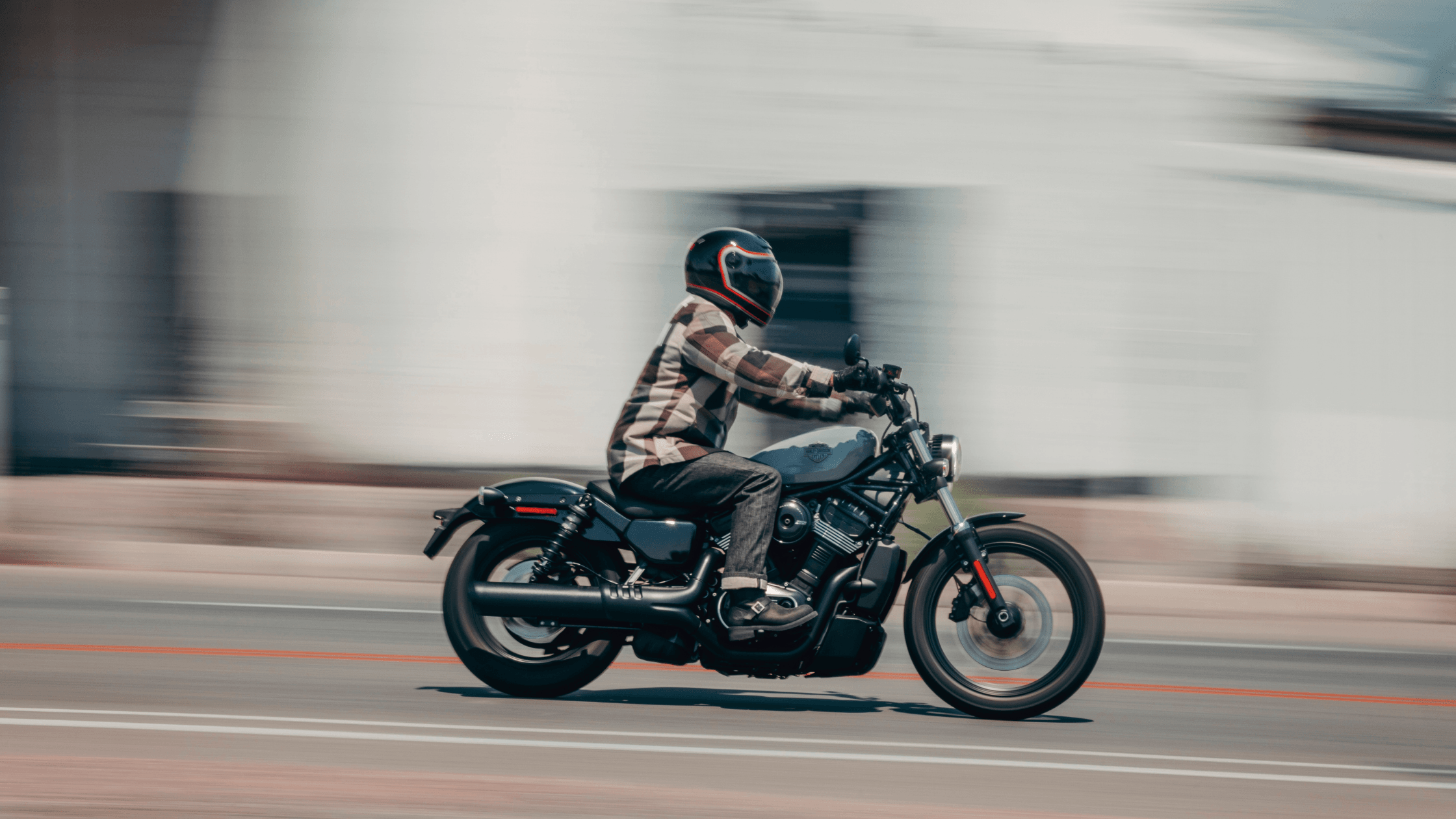

The 2026 Harley-Davidson® Nightster® is designed as a middleweight, performance-oriented cruiser that combines modern engineering with a compact chassis layout. The model uses a liquid-cooled powertrain, a lightweight frame structure, and integrated electronic rider systems to deliver predictable performance and consistent handling. Its design approach prioritizes measurable specifications, functional ergonomics, and controlled power delivery rather than decorative complexity. The motorcycle features a balance of performance output, efficient fuel use, and manageable dimensions intended for a broad range of riding environments.
The 2026 Harley-Davidson® Nightster® uses the RH975 platform and incorporates engineering solutions that support responsiveness and structural rigidity. The overall length measures 88.6 inches, the width is 33 inches, and the overall height is 43.5 inches. Seat height is specified at 27.1 inches when laden and 27.8 inches when unladen, contributing to ease of rider reach and stable low-speed operation. Ground clearance measures 4.3 inches, while the wheelbase is 60.8 inches. Steering geometry includes a 30-degree rake and 5.4 inches of trail, supporting stability and predictable steering behavior.
Engine Configuration and Performance Characteristics
The 2026 Harley-Davidson® Nightster® is powered by the Revolution® Max 975T engine. This liquid-cooled V-twin engine displaces 975 cc and uses a chain-driven dual overhead camshaft design with four valves per cylinder. Intake variable valve timing is integrated to improve airflow efficiency across different engine speeds. Hydraulic self-adjusting lifters reduce maintenance requirements and help maintain consistent valve operation. The combination of modern valve control and fuel injection contributes to controlled combustion efficiency and linear throttle response.
The engine produces a certified torque output of 72 ft-lb at 5,750 rpm and a power rating of 91 horsepower at 7,500 rpm. Bore measures 3.82 inches and the stroke measures 2.6 inches. A compression ratio of 12:1 supports efficient combustion and contributes to engine responsiveness at mid and upper RPM ranges. Fuel delivery is managed through Electronic Sequential Port Fuel Injection, which regulates fuel flow precisely based on throttle input and operating conditions. The engine uses a semi-dry sump lubrication system designed to maintain consistent oil delivery during acceleration, braking, and cornering.
Air intake design includes downdraft intake routing with tuned velocity stacks and washable filter media. The exhaust configuration uses a 2-into-1 layout with a catalyst integrated into the header assembly. This arrangement promotes efficient exhaust flow while meeting emission requirements. Combined engineering choices result in a powertrain designed for balanced performance and predictable torque delivery.
Transmission and Drivetrain Engineering
Power from the Revolution® Max 975T engine flows through a mechanical drivetrain designed for smooth engagement and stable operation. The primary drive uses a gear-based system with a 49/89 ratio. Final drive is managed through a belt system with a 34/80 ratio. This arrangement reduces routine maintenance requirements and maintains consistent power transfer characteristics over time.
The motorcycle uses a six-speed transmission configured to support acceleration in lower gears and efficient cruising in higher gears. Overall gear ratios are calibrated progressively, beginning with a short first gear ratio of 12.21 and decreasing through each gear to a sixth gear ratio of 4.131. The clutch is an eight-plate wet mechanical design with assist and slip functionality. This system reduces clutch lever effort and improves rear wheel stability during aggressive downshifts. The result is smoother gear transitions and controlled deceleration characteristics.
Chassis Architecture and Structural Design
The chassis of the 2026 Harley-Davidson® Nightster® uses a stressed-member design incorporating a high-strength low-alloy steel trellis frame. Stamped, cast, and forged components are combined through MIG welding to create structural rigidity while controlling weight. An aluminum forged mid-structure contributes to mass reduction and supports improved handling response. This design approach allows the engine to function as a structural element, contributing to overall stiffness and reducing unnecessary material.
The swingarm is constructed from mild steel using a rectangular tube section with a stamped cross-member. This configuration provides stability under load while maintaining predictable suspension movement. Weight figures show a shipped weight of 462 pounds and a running order weight of 481 pounds. The gross vehicle weight rating is 922 pounds, with separate front and rear axle ratings supporting load distribution consistency. These figures illustrate the model’s focus on maintaining a lightweight profile without compromising structural capability.
Suspension Setup and Handling Geometry
Front suspension is provided by a 41 mm SHOWA® Dual Bending Valve conventional fork with aluminum triple clamps. This fork design improves damping control by managing pressure distribution inside the fork during compression and rebound. The front suspension travel measures 4.5 inches, supporting stability during braking and on uneven road surfaces.
Rear suspension uses dual outboard direct-acting emulsion shock absorbers equipped with coil springs. A threaded collar allows preload adjustment to accommodate varying rider loads. Rear suspension travel measures 3 inches. The combination of front and rear suspension components is tuned to maintain balanced weight transfer and stable handling across city streets and highway speeds.
Wheel construction consists of aluminum cast units finished in satin black. The front wheel measures 19 inches in diameter and 2.5 inches in width. The rear wheel measures 16 inches in diameter and 4.25 inches in width. Tire specifications include a 100/90-19 front tire and a 150/80B16 rear tire from the Dunlop® Harley-Davidson® Series. These dimensions support predictable steering response while maintaining rear traction stability.
Braking Systems and Rider Safety Features
The 2026 Harley-Davidson® Nightster® uses a front brake system equipped with a single floating rotor measuring 12.6 inches in diameter and paired with a four-piston axially mounted caliper. The rear braking system uses a 10.2-inch rotor and a single-piston floating caliper. This layout is calibrated to provide balanced stopping power and controlled brake feel across different riding conditions.
Anti-Lock Braking System functionality is standard equipment and helps prevent wheel lock during emergency braking events. The motorcycle also includes a Traction Control System that monitors wheel slip and adjusts engine output to maintain traction. Drag-torque Slip Control System functionality assists in maintaining rear wheel stability during rapid deceleration or aggressive downshifting. While cornering-enhanced electronic systems are not included, the available rider safety enhancements provide essential intervention for maintaining control in standard riding scenarios.
Electrical and Lighting Systems
The electrical system uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 12 Ah. Cold cranking performance is specified at 225 CCA at zero degrees Fahrenheit. Charging capability comes from a three-phase 45-amp system capable of producing 300 watts at 1,200 rpm and reaching a maximum output of 585 watts at 2,250 rpm. These figures support consistent electrical performance for lighting and instrumentation functions.
Engine starting is performed באמצעות a 0.9 kW electric system using a direct drive starter motor engagement design. Lighting components consist entirely of LED technology. The headlamp includes low- and high-beam operation with signature position lighting. Rear lighting and turn signals also use LED elements to improve visibility while reducing power consumption. The lighting configuration supports consistent illumination performance and long service life.
Instrumentation and Technology Integration
The 2026 Harley-Davidson® Nightster® uses a 4-inch round analog display combined with a segmented LCD screen. This layout provides clear visibility for essential information while maintaining a compact instrument footprint. The gauge cluster includes a speedometer readout, turn signal indicators, traction control indication, coolant temperature alert, ABS alerts, battery voltage monitoring, high beam indication, low fuel indication, neutral position indication, and oil pressure alerts. Additional indicators include service reminders, failure indication alerts, and low tire pressure indication functionality.
Vehicle information displayed through the LCD section includes odometer readings, trip meters, gear position indicator, fuel range calculations, digital tachometer display, segmented fuel level display, and ride mode indication. The system does not include infotainment features, speaker systems, USB connectivity, Bluetooth® integration, or navigation functions. The focus remains on delivering functional ride information without auxiliary entertainment features.
Fuel Efficiency and Operational Characteristics
Fuel capacity for the 2026 Harley-Davidson® Nightster® is 3.1 gallons, with a reserve fuel capacity of 0.8 gallons indicated by a warning light. The estimated fuel economy rating is 52 miles per gallon under combined city and highway conditions. Oil capacity with filter is rated at 4.75 quarts, and coolant capacity is 2.22 quarts. These specifications support consistent operation and manageable maintenance intervals.
Lean angle capability measures 32 degrees on both the left and right sides. Torque and lean angle testing methods follow recognized standards, reflecting standardized measurement practices. The combination of fuel economy, manageable weight, and balanced chassis geometry supports controlled operation across various riding conditions while maintaining predictable handling behavior.
Schedule a Test Ride within Tampa, FL
Riders interested in evaluating the technical capabilities of the 2026 Harley-Davidson® Nightster® can schedule a test ride through Tampa Bay Harley-Davidson® within Tampa, FL. A test ride allows direct evaluation of the Revolution® Max 975T engine performance, suspension behavior, and rider safety systems in controlled conditions. Experiencing the torque delivery, braking response, and compact chassis proportions provides a clear understanding of how the specifications translate into riding behavior. Our dealership team can guide riders through the motorcycle’s instrumentation and technical features during the visit. Scheduling a ride offers the opportunity to assess the motorcycle’s performance characteristics and overall mechanical design firsthand.
