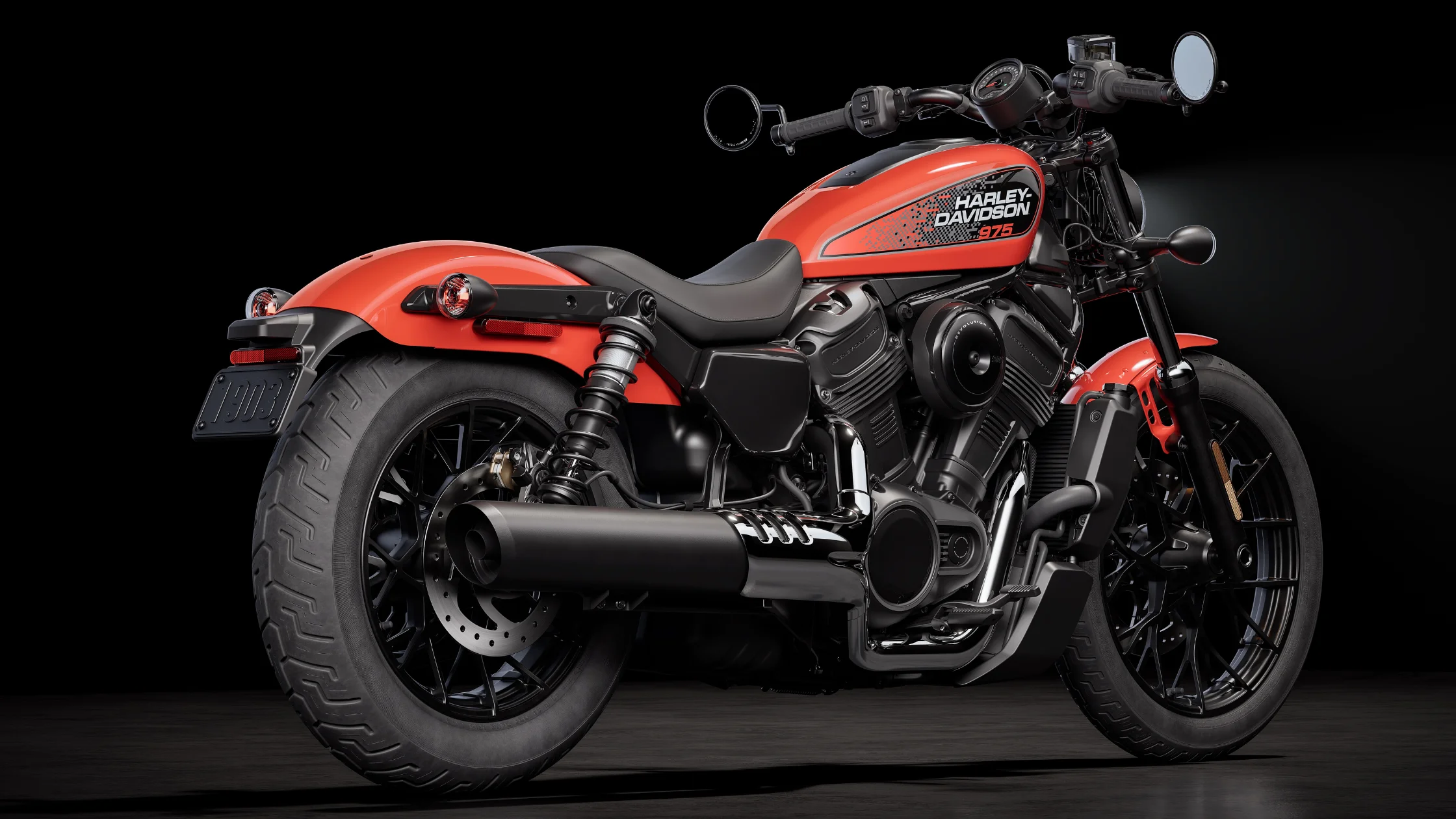

The 2026 Harley-Davidson® Nightster® combines a compact chassis layout with a liquid-cooled V-Twin engine platform and a rider-focused electronics package. The motorcycle uses the Revolution® Max 975T engine, a 6-speed transmission, and a steel trellis frame engineered for structural rigidity and balanced weight distribution. Harley-Davidson® designed the 2026 Harley-Davidson® Nightster® with a lower seat height, mid-range power delivery, and standard rider safety systems intended for urban riding, highway travel, and general street operation.
The 2026 Harley-Davidson® Nightster® measures 88.6 inches in overall length, 33 inches in overall width, and 43.5 inches in overall height. The motorcycle uses a 60.8-inch wheelbase combined with a 30-degree rake and 5.4 inches of trail. These dimensions contribute to directional stability while maintaining responsive steering characteristics at lower speeds and during corner entry. The laden seat height measures 27.1 inches, while the unladen seat height measures 27.8 inches. Static ground clearance is rated at 4.3 inches. The motorcycle weighs 462 pounds as shipped and 481 pounds in running order.
Revolution® Max 975T Engine Configuration
The 2026 Harley-Davidson® Nightster® uses the Revolution® Max 975T engine with a displacement of 975 cc, or 59.5 cubic inches. The engine features a bore of 3.82 inches and a stroke of 2.6 inches. Harley-Davidson® equips the engine with chain-driven dual overhead camshafts, hydraulic self-adjusting lifters, intake variable valve timing, and four valves per cylinder.
The engine uses a 12:1 compression ratio. This configuration supports efficient combustion and consistent power delivery across a broad rpm range. Intake airflow enters through a downdraft intake system with tuned velocity stacks and washable filter media. Fuel delivery occurs through Electronic Sequential Port Fuel Injection. The fuel injection system monitors operating conditions and regulates fuel delivery for controlled throttle response and combustion efficiency.
The lubrication system uses a semi-dry sump design. The exhaust system consists of a 2-into-1 layout with a catalyst integrated into the header assembly. This arrangement reduces system complexity while maintaining emissions compliance and compact routing.
The Revolution® Max 975T produces 91 horsepower at 7,500 rpm and 72 ft-lb of torque at 5,750 rpm. Harley-Davidson® lists torque testing under J1349 certification standards. The engine characteristics focus on mid-range acceleration and stable output during sustained riding conditions.
Six-Speed Transmission and Drivetrain Layout
The 2026 Harley-Davidson® Nightster® uses a 6-speed transmission paired with a mechanical assist-and-slip clutch system. The clutch incorporates an 8-plate wet design with 1090N spring pressure. The assist-and-slip mechanism reduces clutch lever effort and helps manage rear-wheel behavior during aggressive downshifts.
Primary drive operation uses a gear-driven system with a 49/89 ratio. Final drive power transfers through a belt-driven configuration using a 34/80 ratio. The belt final drive reduces routine maintenance requirements associated with chain lubrication and adjustment.
The transmission gear ratios include 12.21 in first gear, 9.022 in second gear, 6.994 in third gear, 5.641 in fourth gear, 4.731 in fifth gear, and 4.131 in sixth gear. The lower first-gear ratio supports controlled launches from a stop, while the taller upper gears assist with reduced engine rpm during highway travel.
Trellis Frame Engineering and Suspension Components
Harley-Davidson® builds the 2026 Harley-Davidson® Nightster® around a stressed-member high-strength low-alloy steel trellis frame. The frame incorporates stamped, forged, and cast junctions combined with MIG-welded construction methods. An aluminum forged mid-structure contributes to overall rigidity and structural integration between the engine and chassis.
The swingarm uses a mild steel rectangular tube design with a stamped cross-member and MIG-welded assembly. This construction supports rear suspension stability and controlled wheel movement during acceleration and braking.
Front suspension duties are handled by 41 mm SHOWA® Dual Bending Valve conventional forks paired with aluminum triple clamps. The front suspension travel measures 4.5 inches. The Dual Bending Valve fork configuration manages damping consistency across varying road surfaces and braking loads.
The rear suspension system uses dual outboard direct-acting emulsion shock absorbers with coil springs and threaded preload adjustment collars. Rear suspension travel measures 3 inches. The preload adjustment allows riders to modify suspension characteristics based on rider weight and operating conditions.
Wheel Dimensions and Tire Specifications
The 2026 Harley-Davidson® Nightster® uses cast aluminum wheels finished in satin black. The front wheel measures 19 inches in diameter and 2.5 inches in width. The rear wheel measures 16 inches in diameter and 4.25 inches in width.
The motorcycle rides on Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire specification is 100/90-19 57H using the D401F model designation. The rear tire specification is 150/80B16 77H using the D401T model designation.
The front wheel diameter contributes to steering stability and directional tracking at highway speeds. The rear tire width supports traction during acceleration and braking transitions. Combined wheel sizing creates a balance between maneuverability and straight-line stability.
Braking Hardware and Rider Control Systems
The braking system on the 2026 Harley-Davidson® Nightster® consists of a single front floating rotor with an axially mounted 4-piston caliper. The front rotor measures 12.6 inches in diameter and 0.23 inches in thickness. The rear brake assembly uses a floating single-piston caliper paired with a solid uniform expansion rotor measuring 10.2 inches in diameter and 0.2 inches in thickness.
Harley-Davidson® equips the 2026 Harley-Davidson® Nightster® with standard Anti-lock Braking System functionality. The ABS system monitors wheel speed conditions and assists with braking stability during low traction situations.
The motorcycle also includes a standard Traction Control System. This system monitors rear-wheel traction during acceleration and adjusts output characteristics when rear-wheel slip is detected. The Drag-torque Slip Control System is also standard equipment. DSCS manages rear-wheel behavior during abrupt deceleration and aggressive downshifting by regulating torque transfer through the drivetrain.
The 2026 Harley-Davidson® Nightster® does not include Electronic Linked Braking, Vehicle Hold Control, Tire Pressure Monitoring System, Wheel Lift Mitigation, or cornering-enhanced rider safety technologies. The rider assistance package remains focused on core braking and traction-management systems.
Lighting Systems and Electrical Components
The 2026 Harley-Davidson® Nightster® uses a full LED lighting package. The headlamp assembly includes low-beam and high-beam LED functionality combined with signature position lighting. Rear lighting also uses LED technology for tail and stop lamp operation. Front and rear turn signals use LED Bullet Turn Signal units.
The motorcycle uses a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 12 amp-hours with 225 cold cranking amps at 0 degrees Fahrenheit. Electrical charging duties are managed by a three-phase 45-amp charging system. Harley-Davidson® rates the charging output at 300 watts at 13 volts and 1,200 rpm, with maximum output reaching 585 watts at 13 volts and 2,250 rpm.
Starting functions use a 0.9 kW electric starter system with direct-drive starter motor engagement. This configuration supports consistent engine starts under standard operating conditions.
Instrumentation and Information Display Functions
The 2026 Harley-Davidson® Nightster® uses a 4-inch analog instrument display with a segmented LCD information screen. The instrumentation layout provides operational data and warning indicators through a compact centralized display area.
The display includes a speedometer, digital tachometer, selectable odometer readings in miles or kilometers, Trip A and Trip B functions, fuel range information, segmented fuel level display, ride mode indication, gear position indication, and a 12-hour or 24-hour clock.
The system also displays operational alerts and status indicators, including traction control indication, coolant temperature alert, ABS alert, battery voltage alert, low fuel indication, neutral position indication, high beam indication, check engine light indication, oil pressure alert, service indication, and low tire pressure indication.
The 2026 Harley-Davidson® Nightster® does not include integrated infotainment functionality, Bluetooth® connectivity, USB support, navigation systems, intercom capability, radio systems, or headset integration. Harley-Davidson® configures the display system around essential operational data rather than multimedia functions.
Fuel Capacity and Operational Efficiency
The 2026 Harley-Davidson® Nightster® uses a 3.1-gallon fuel tank with a reserve fuel warning light activated at approximately 0.8 gallons remaining. Harley-Davidson® estimates fuel economy at 52 mpg under city and highway testing conditions.
The motorcycle uses 4.75 quarts of oil with filter replacement and has a 2.22 quarts of coolant capacity. These fluid capacities support the liquid-cooled engine platform and semi-dry sump lubrication system.
The gross vehicle weight rating measures 922 pounds. The front gross axle weight rating measures 353 pounds, while the rear gross axle weight rating measures 595 pounds. These specifications define maximum operating load capacities for rider weight and additional cargo.
Riding Position and Structural Geometry
The riding position of the 2026 Harley-Davidson® Nightster® reflects its compact chassis dimensions and lower seat height configuration. The motorcycle combines mid-mounted rider controls with a narrow frame profile and centralized mass distribution. The 30-degree rake and 28-degree fork angle contribute to steering response and directional control during low-speed operation and highway cornering.
Lean angle capability measures 32 degrees on both the right and left sides. Harley-Davidson® tested these figures under J1168 standards. Balanced lean-angle measurements support predictable cornering transitions and consistent chassis behavior through directional changes.
The wheelbase, suspension layout, and frame geometry create a stable platform for urban riding environments and extended road travel. The lower running weight and moderate seat height also assist with rider reach during stops and low-speed maneuvering.
