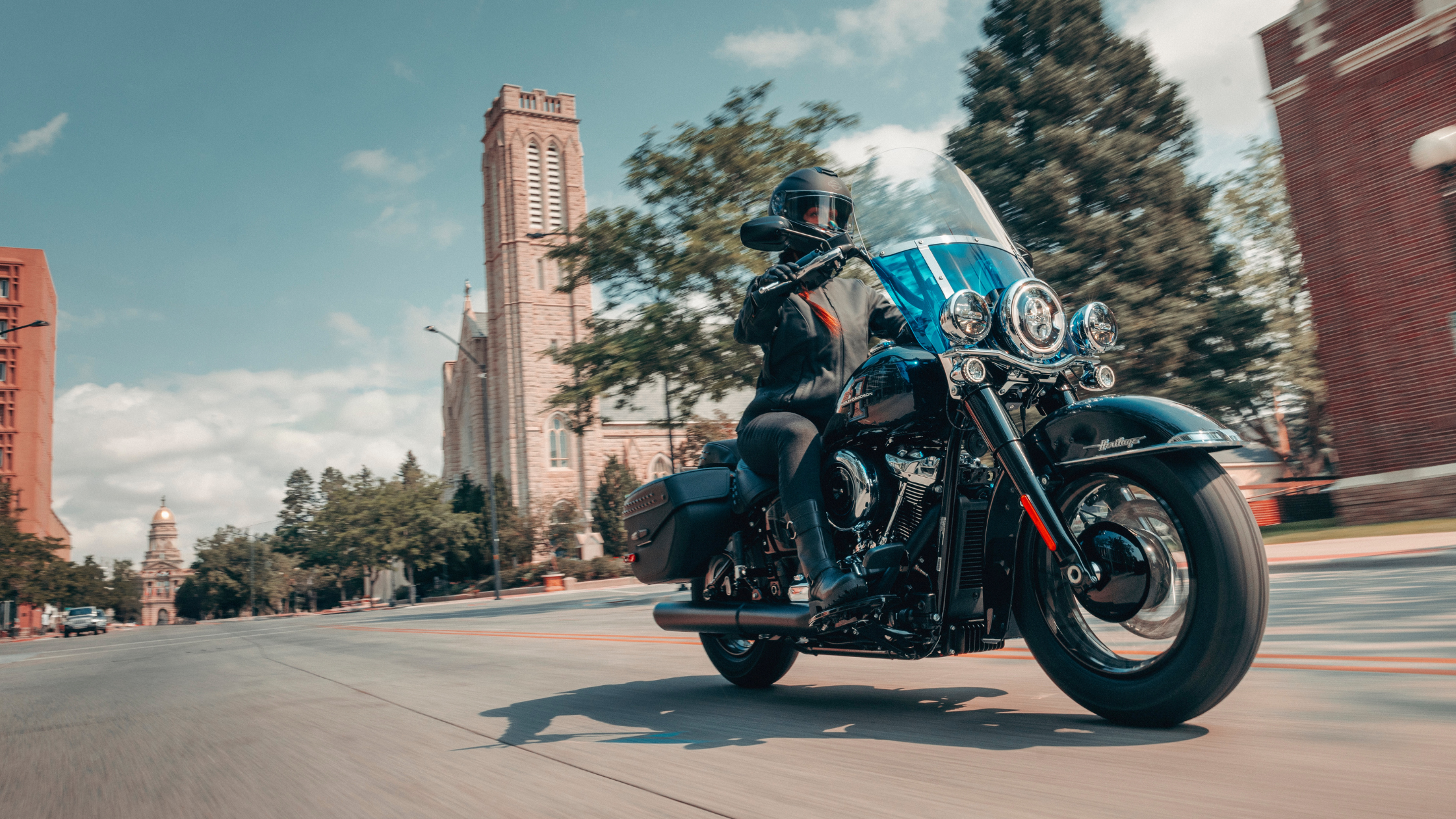

The 2026 Harley-Davidson® Heritage Classic is configured as a large-displacement cruiser with integrated touring capability, supported by a Milwaukee-Eight® 117 Classic engine, a six-speed transmission, and a steel frame chassis. The model combines established mechanical architecture with updated electronic rider aids and LED-based electrical systems. Its specifications reflect a focus on torque delivery, load capacity, and stable geometry, with supporting components designed to maintain consistency under varying riding conditions. The 2026 Harley-Davidson® Heritage Classic uses a 95.1-inch overall length, a 36.6-inch width, and a 54.7-inch height. The wheelbase measures 64.2 inches, with a 30-degree rake and 5.5 inches of trail, which contribute to predictable steering input and straight-line stability.
Engine Configuration and Output Characteristics
The Milwaukee-Eight® 117 Classic engine defines the performance profile of the 2026 Harley-Davidson® Heritage Classic. This engine displaces 117 cubic inches or 1,923 cubic centimeters, using a bore of 4.075 inches and a stroke of 4.5 inches. The compression ratio is set at 10.3 to 1, supporting efficient combustion while maintaining compatibility with premium fuel. The engine uses a pushrod-operated overhead valve design with four valves per cylinder and hydraulic self-adjusting lifters. This configuration reduces the need for manual valve adjustment while maintaining consistent valve timing across operating conditions.
The fuel system is Electronic Sequential Port Fuel Injection, which meters fuel delivery with precision and supports stable throttle response. The intake system includes a 9-inch round air cleaner with a washable fiberglass filter element, which allows for repeated use and consistent airflow. Exhaust gases are managed through a 2-into-1 exhaust system with the catalyst positioned in the header. The lubrication system uses a pressurized dry-sump design with an oil cooler, which helps regulate operating temperature and maintain oil circulation under load.
The engine produces 120 foot-pounds of torque at 2,500 revolutions per minute and 98 horsepower at 4,600 revolutions per minute. These figures indicate a torque-biased output that supports acceleration at lower engine speeds and sustained cruising without frequent gear changes. The torque testing method follows J1349 standards, ensuring consistent measurement conditions.
Transmission System and Drivetrain Integration
The drivetrain of the 2026 Harley-Davidson® Heritage Classic is engineered to transfer torque efficiently while maintaining durability. The motorcycle uses a 6-speed Cruise Drive® transmission, which is paired with a mechanical 10-plate wet clutch. The clutch design incorporates assist and conventional operation, providing manageable lever effort and consistent engagement.
Power transfer begins with a primary chain drive using a 34 to 46 ratio. Final drive is delivered through a belt system with a 32 to 66 ratio. This combination reduces maintenance requirements compared to a full chain system and contributes to smooth operation. The six-speed gearbox uses the following overall ratios: first gear at 9.311, second at 6.454, third at 4.793, fourth at 3.882, fifth at 3.307, and sixth at 2.79. These ratios provide a wide spread between low-speed control and highway cruising efficiency, allowing the engine to operate within an optimal range across different speeds.
Chassis Construction and Structural Design
The chassis of the 2026 Harley-Davidson® Heritage Classic uses a mild steel tubular frame with a rectangular-section backbone. The frame incorporates stamped, cast, and forged junctions that are MIG welded for structural integrity. Aluminum forged fender supports are included to reduce weight in non-critical load areas. The swingarm is also constructed from mild steel tubular sections, featuring a stamped cross-member and forged axle junctions. A removable belt spacer is integrated into the swingarm design to facilitate maintenance.
The steering geometry consists of a 30-degree rake and matching fork angle, which supports stable handling characteristics. The trail measurement of 5.5 inches contributes to controlled steering response and directional stability. Static ground clearance is measured at 4.7 inches, which reflects a low-profile design while maintaining sufficient clearance for standard road conditions.
Suspension Components and Ride Control
Front suspension is managed by a 49 millimeter telescopic fork with dual-bending valve technology and dual-rate springs. The fork assembly includes aluminum triple clamps and protective covers. This configuration is designed to absorb road irregularities while maintaining front-end stability. Rear suspension uses a hidden coil-over monoshock with a free piston design and a 56 millimeter stroke. Hydraulic preload adjustment allows the rider to modify suspension settings to accommodate additional weight from passengers or cargo.
Suspension travel measures 5.1 inches at the front and 4.4 inches at the rear. This travel range supports a balance between comfort and control. The hidden rear shock maintains the traditional visual profile of the motorcycle while providing modern adjustment capability.
Dimensions, Weight Distribution, and Load Capacity
The 2026 Harley-Davidson® Heritage Classic is designed with a focus on low seat height and balanced weight distribution. The laden seat height is 26.3 inches, while the unladen seat height is 27.2 inches. These measurements position the rider close to the ground, which can improve control during low-speed operation. The overall weight is 690 pounds as shipped and 719 pounds in running order. The gross vehicle weight rating is 1,160 pounds, with a front axle rating of 450 pounds and a rear axle rating of 730 pounds.
Fuel capacity is 5 gallons, with a 1-gallon reserve indicated by a warning light. Oil capacity with filter is 5 quarts, while the transmission holds 1 quart and the primary chain case holds 1.25 quarts. Luggage capacity is rated at 1.6 cubic feet, supporting moderate storage needs for extended rides.
Wheels, Tires, and Contact Patch Specifications
The 2026 Harley-Davidson® Heritage Classic uses Dunlop® Harley-Davidson® Series bias blackwall tires. The front tire is specified at 130/90B16, while the rear tire is 150/80B16. These tire sizes provide a stable contact patch and support the motorcycle’s weight and torque output. Standard wheels are black 9-spoke cast aluminum with a 16-inch diameter and a width of 3 inches for both front and rear. Optional wheels include black tubeless laced designs with 36 bright spokes, offering an alternative configuration without changing the core dimensions.
Braking System and Mechanical Control
The braking system uses a 4-piston fixed caliper at the front and a 2-piston floating caliper at the rear. The front brake rotor measures 11.8 inches in diameter with a thickness of 0.2 inches, while the rear rotor measures 11.5 inches with a thickness of 0.23 inches. The rotors are solid with uniform expansion characteristics. The front brake system uses a single disc configuration. Anti-lock braking system functionality is included as standard, providing controlled braking under varying traction conditions.
Electronic Systems and Rider Interface
The electrical system includes a sealed maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours, with 310 cold cranking amps at 0 degrees Fahrenheit. Charging is handled by a three-phase 48-amp system, capable of delivering 364 watts at 13 volts and 900 revolutions per minute, with a maximum output of 624 watts at 2,000 revolutions per minute. The starting system uses a 1.6 kilowatt electric starter with solenoid shift engagement.
Lighting is fully LED-based, including the headlamp, tail and stop lamp, front turn signals, and rear turn signals. Auxiliary LED fog lamps are also included. The instrument cluster features a 5-inch analog speedometer combined with a digital display. This display provides information including gear position, odometer, fuel level, ride modes, traction control status, ABS status, tire pressure monitoring, cruise control, clock, trip data, range estimation, and tachometer readout. A USB-C power outlet provides 5 volts at 2.4 amps for device charging.
The model does not include an integrated infotainment system, speakers, Bluetooth® connectivity, or navigation interface. The absence of these systems simplifies the rider interface and reduces electronic complexity.
Rider Safety Enhancements and Control Systems
The 2026 Harley-Davidson® Heritage Classic includes multiple electronic rider safety systems as standard equipment. Anti-lock braking system functionality is integrated into the braking system. The traction control system monitors rear wheel slip and adjusts power delivery to maintain traction. The drag-torque slip control system helps manage rear wheel behavior during aggressive downshifting.
The 2026 Harley-Davidson® Heritage Classic also includes a tire pressure monitoring system, which provides ongoing feedback on tire condition. Cornering-enhanced systems are incorporated, including cornering-enhanced anti-lock braking, cornering-enhanced traction control, and cornering drag-torque slip control. These systems adjust their response based on lean angle, providing additional control during cornering maneuvers. Certain advanced features such as electronic-linked braking, vehicle hold control, and wheel-lift mitigation are not included in this configuration.
Fuel Efficiency and Operational Range
Fuel economy for the 2026 Harley-Davidson® Heritage Classic is estimated at 47 miles per gallon under combined city and highway conditions. This efficiency, combined with a 5-gallon fuel tank, supports extended riding intervals between refueling stops. The reserve fuel capacity of 1 gallon provides additional range once the warning indicator is activated. These figures contribute to the motorcycle’s suitability for longer-distance riding without frequent interruptions.
