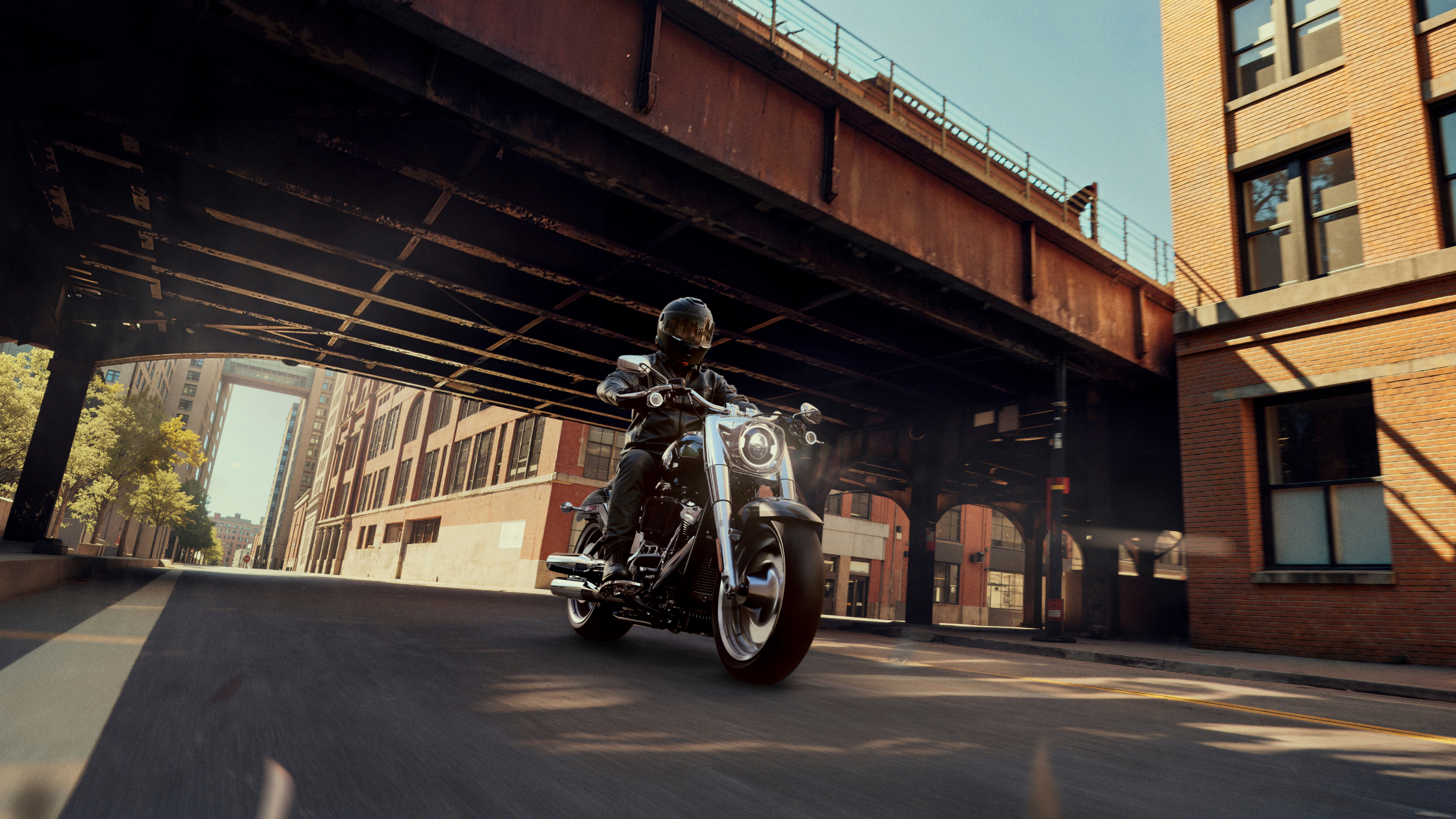

The 2026 Harley-Davidson® Fat Boy® is configured as a heavyweight cruiser with a focus on displacement, chassis stability, and integrated electronic control systems. The model uses a Softail®-based platform with a mild steel tubular frame and a long wheelbase that supports consistent directional stability. The overall length measures 93.1 inches, the width measures 40 inches, and the height measures 44.1 inches. The wheelbase extends to 65 inches, which contributes to balanced weight distribution and steady handling characteristics during straight-line travel and gradual directional changes.
The steering geometry includes a 30-degree rake and a 32-degree fork angle, paired with a trail measurement of 4.1 inches. These values indicate a configuration that emphasizes controlled steering input and stable front-end tracking. The laden seat height is set at 25.9 inches, while the unladen seat height is 26.6 inches. This low seat positioning supports a lower center of gravity and facilitates controlled rider reach to the ground during stops. Static ground clearance is measured at 4.9 inches, which aligns with the overall low-profile stance of the motorcycle.
Milwaukee-Eight® 117 Engine Architecture and Output Ratings
The 2026 Harley-Davidson® Fat Boy® is powered by the Milwaukee-Eight® 117 Custom engine. This engine has a displacement of 117 cubic inches, which is equivalent to 1,923 cubic centimeters. The bore measures 4.075 inches, and the stroke measures 4.5 inches. The compression ratio is specified at 10.3 to 1, supporting a balance between combustion efficiency and torque generation.
The valvetrain uses a pushrod-operated overhead valve system with hydraulic, self-adjusting lifters. Each cylinder incorporates four valves, which enhances airflow and combustion consistency. Fuel delivery is managed by Electronic Sequential Port Fuel Injection, which provides controlled fuel distribution across operating conditions. Air intake is handled through a Helix-style air cleaner, and exhaust gases are routed through a 2-into-2 staggered exhaust system with the catalyst integrated into the muffler assembly.
The lubrication system uses a pressurized dry-sump configuration with an oil cooler. This system supports temperature management and consistent oil circulation during extended operation. The engine produces 126 foot-pounds of torque at 3,000 revolutions per minute and 103 horsepower at 4,800 revolutions per minute. These values indicate a torque-focused output profile, with peak torque available at lower engine speeds to support steady acceleration and reduced need for frequent gear changes.
Six-Speed Transmission and Driveline Ratios
The 2026 Harley-Davidson® Fat Boy® uses a six-speed Cruise Drive® transmission that distributes engine power across a wide range of operating conditions. The overall gear ratios are configured to support controlled acceleration in lower gears and reduced engine speed during higher-speed travel. The first gear ratio is 9.311, followed by 6.454 in second, 4.793 in third, 3.882 in fourth, 3.307 in fifth, and 2.79 in sixth gear.
Primary drive is managed by a chain system with a 34 to 46 ratio. Final drive is delivered through a belt system with a 32 to 66 ratio. This combination supports efficient torque transfer while reducing maintenance complexity compared to chain-only systems. The clutch is a mechanical 10-plate wet design with assist and conventional functionality, which supports smoother engagement and consistent power delivery under load.
Frame Engineering and Swingarm Construction
The frame of the 2026 Harley-Davidson® Fat Boy® is constructed from mild steel tubular sections with a rectangular backbone. The structure includes stamped, cast, and forged junctions that are joined using MIG welding processes. Aluminum forged fender supports are integrated into the frame design to reduce weight without compromising structural rigidity. This combination of materials and construction methods supports durability and consistent performance under load.
The swingarm is also constructed from mild steel tubular sections and includes a stamped cross-member and forged axle junctions. The assembly uses MIG welding and incorporates a removable belt spacer to facilitate maintenance of the final drive system. The frame and swingarm configuration is designed to support the motorcycle’s weight distribution and maintain alignment under acceleration and braking forces.
Suspension Design and Travel Measurements
Front suspension is provided by a 49 millimeter telescopic fork with dual-bending valve technology. The fork includes aluminum triple clamps and a dual-rate spring system, which supports controlled compression and rebound characteristics. The fork is also fitted with external covers that align with the model’s visual design.
Rear suspension is handled by a hidden coil-over monoshock with a free piston design. The rear unit has a 43 millimeter stroke and includes hydraulic preload adjustment, allowing for adjustments based on rider weight and load conditions. Suspension travel is measured at 5.1 inches at the front and 3.4 inches at the rear. These values indicate a setup that prioritizes stability and controlled movement rather than extended suspension travel.
Wheel Construction, Tire Dimensions, and Contact Surface
The 2026 Harley-Davidson® Fat Boy® is equipped with machined Lakester cast aluminum wheels. Both the front and rear wheels have a diameter of 18 inches. The front wheel has a width of 4.5 inches, while the rear wheel measures 8 inches in width. This configuration supports the installation of a wide rear tire, which is a defining characteristic of the model.
The 2026 Harley-Davidson® Fat Boy® uses Michelin® Scorcher 11 tires. The front tire specification is 160/60R18, while the rear tire specification is 240/40R18. The wide rear tire increases the contact area with the road surface, which contributes to traction during acceleration and enhances stability during straight-line travel. The combination of wheel width and tire dimensions supports the motorcycle’s handling profile and visual proportions.
The lean angle is specified at 25.6 degrees on both the right and left sides. This value indicates the available cornering clearance before hard parts make contact with the road surface. The lean angle is consistent with the motorcycle’s cruiser classification and low ground clearance.
Braking System Configuration and Rotor Specifications
The braking system on the 2026 Harley-Davidson® Fat Boy® uses a 4-piston fixed caliper at the front and a 2-piston floating caliper at the rear. The front brake uses a rotor with a diameter of 11.8 inches and a thickness of 0.2 inches. The rear brake rotor measures 11.5 inches in diameter with a thickness of 0.23 inches. Both front and rear rotors are designed as split 7-spoke floating units, which allow for thermal expansion and consistent braking performance.
Anti-lock Braking System is included as standard equipment. This system monitors wheel speed and modulates braking pressure to prevent wheel lock during sudden or heavy braking. The braking configuration is calibrated to work in conjunction with the motorcycle’s weight and tire dimensions, providing controlled deceleration under varying conditions.
Integrated Rider Assistance and Electronic Control Systems
The 2026 Harley-Davidson® Fat Boy® includes multiple electronic systems designed to assist rider control. The Traction Control System monitors rear wheel speed and adjusts engine output to maintain traction. The Drag-torque Slip Control System manages engine braking forces to reduce rear-wheel instability during downshifting.
The Tire Pressure Monitoring System provides pressure data through the instrument display, allowing the rider to monitor tire condition during operation. Cornering-enhanced systems are also included. The Cornering Enhanced Anti-lock Braking System adjusts braking performance based on lean angle, while the Cornering Enhanced Traction Control modifies engine output during cornering. Cornering Drag-torque Slip Control extends slip management to angled riding conditions.
Electronic Linked Braking, Vehicle Hold Control, and wheel lift mitigation systems are not included. This clarifies the extent of electronic assistance provided on this model.
Electrical System Performance and Lighting Equipment
The electrical system uses a sealed, maintenance-free absorbed glass mat battery rated at 12 volts and 17.5 amp-hours. The battery provides 310 cold cranking amps at zero degrees Fahrenheit. Charging is managed by a three-phase 48-amp system, which produces up to 624 watts at higher engine speeds.
The starting system uses a 1.6 kilowatt electric starter with solenoid shift engagement. Lighting is fully LED, including the headlamp with both low and high beam functions and signature position lighting. Turn signals are LED bullet-style units at both the front and rear, and the tail and stop lights follow the same configuration.
Instrumentation consists of a 5-inch analog speedometer with an integrated digital display. The display provides information on gear position, odometer readings, fuel level, ride modes, traction control status, ABS status, tire pressure, cruise control, clock, trip data, range, and tachometer readings. This combination allows for clear visibility of essential data while maintaining a simplified interface.
A USB-C power outlet is included, providing 5 volts at 2.4 amps for device charging. Infotainment features such as Bluetooth® connectivity, navigation systems, and audio components are not included, which maintains a focus on essential instrumentation and rider information.
Fuel Capacity, Fluid Volumes, and Weight Distribution
The 2026 Harley-Davidson® Fat Boy® has a fuel capacity of 5 gallons, with a reserve warning triggered at approximately 1 gallon remaining. Engine oil capacity with filter is 5 quarts, transmission capacity is 1 quart, and the primary chain case holds 1.43 quarts of fluid. These values define the operational requirements for fluid management and maintenance intervals.
The estimated fuel economy is 47 miles per gallon under combined riding conditions. The motorcycle weighs 668 pounds as shipped and 694 pounds in running order. The gross vehicle weight rating is 1,175 pounds, with a front axle rating of 450 pounds and a rear axle rating of 760 pounds. These figures indicate the load capacity and distribution limits for the motorcycle.
