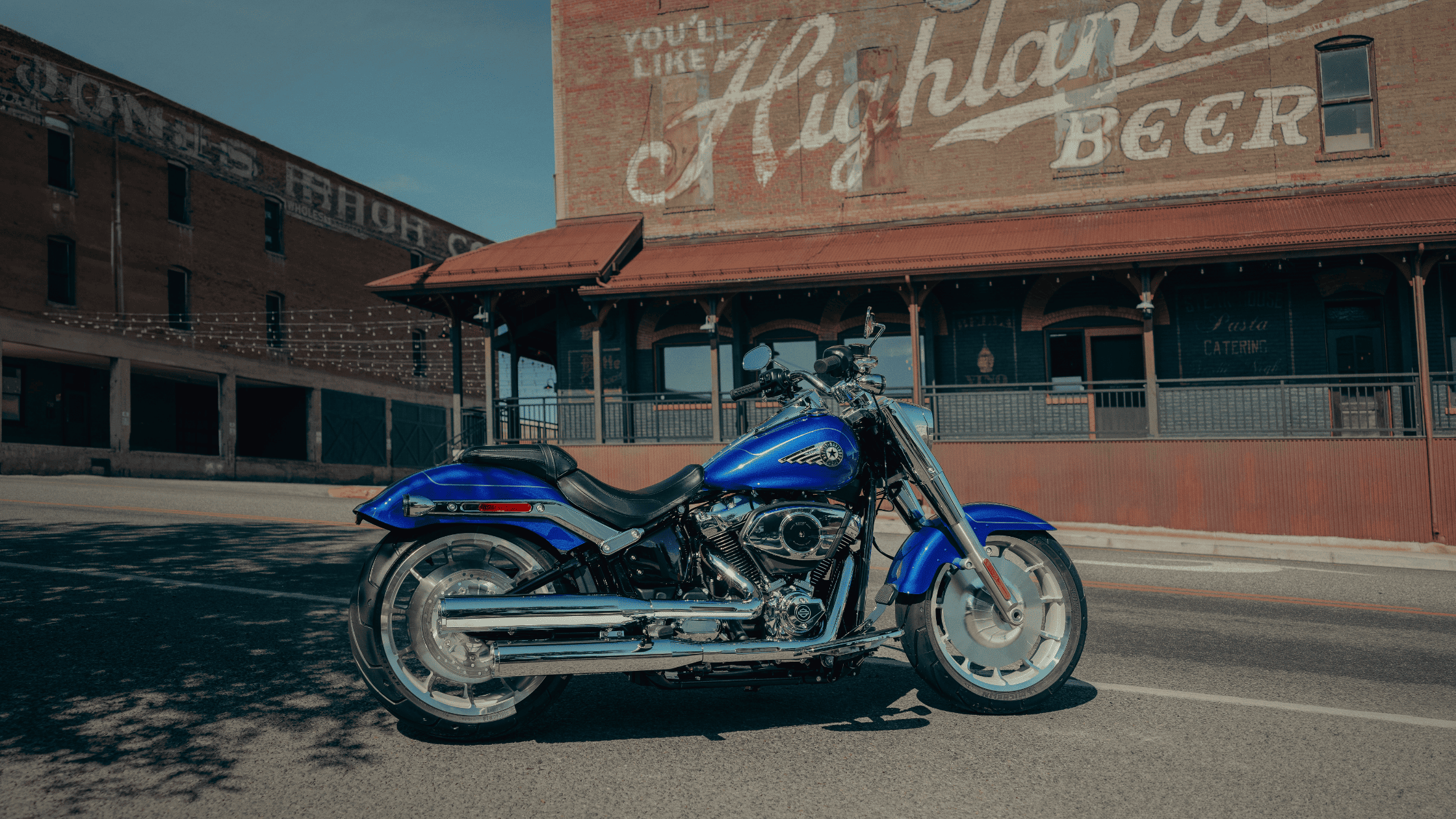

The 2025 Harley-Davidson® Fat Boy® remains one of the most structurally commanding cruiser motorcycles in the Softail® lineup. Its long-standing frame geometry, solid-disc wheels, and low-slung stance are retained but now supported by modernized engine calibration, rider-focused controls, and enhanced suspension tuning. The motorcycle continues to offer high-volume presence on the road while addressing performance and control through mechanical revisions. This year's model builds on structural consistency and updates key functional elements to meet current rider expectations without departing from its core design principles.
Engine Configuration and Output Characteristics
At the center of the 2025 Harley-Davidson® Fat Boy® is the Milwaukee-Eight® 117 Custom V-Twin engine. This air- and oil-cooled power unit features a 117 cubic inch displacement, which supports strong low-end torque and consistent power delivery across the usable RPM range. The engine delivers mechanical precision under both urban and sustained high-speed conditions.
This configuration operates with a bore of 4.075 inches and a stroke of 4.5 inches. Compression is held at 10.3:1, which allows for a controlled balance between performance and thermal efficiency. The engine employs electronic sequential port fuel injection (ESPFI) for accurate fuel mapping across varying throttle input. A dual exhaust with a two-into-two system ensures minimized backpressure and maintains performance across elevation and temperature changes.
Chassis and Suspension Architecture
The frame utilizes the standard Harley-Davidson® Softail® platform. The frame is designed to offer both rigidity and weight control while allowing the rear shock to be positioned under the seat. This configuration helps preserve the hardtail aesthetic while enabling modern suspension behavior.
The front suspension features a dual-bending valve telescopic fork with 49 mm fork legs. This design provides a linear damping response, which helps reduce fork dive under braking while maintaining surface contact over uneven roads. Rear suspension is managed through a hidden, coil-over monoshock with hydraulic preload adjustability. The shock's preload can be modified via a knob located under the seat. This allows tuning to match rider load or cargo conditions without requiring additional tools.
Brake System and Control Interface
Braking components on the 2025 Harley-Davidson® Fat Boy® consist of a 300 mm fixed front disc clamped by a four-piston caliper and a 292 mm rear disc with a two-piston floating caliper. This arrangement supports a firm stopping response and heat management for extended rides. The braking system integrates with an anti-lock braking system (ABS) designed to limit wheel lock in low-traction environments. This component operates independently on each wheel, contributing to enhanced control during emergency stops or abrupt directional changes.
The hand and foot control layout remains consistent with standard Softail® geometry. Levers and pedals are ergonomically aligned to support neutral rider posture. Grip diameter and switchgear placement are designed for tactile use without disrupting throttle or clutch inputs. A simplified button array allows riders to toggle ride modes and traction control settings with minimal effort.
Ride Modes and Rider Assistance Features
The 2025 Harley-Davidson® Fat Boy® is equipped with selectable ride modes. These modes (Road, Rain, and Sport) alter throttle response, power delivery, and traction system engagement. The Road mode is calibrated for standard conditions and balances throttle input with consistent torque output. Rain mode softens throttle response and increases traction control sensitivity. Sport mode enhances throttle responsiveness and reduces intervention, allowing for more aggressive control inputs under monitored conditions.
Each mode operates through the motorcycle’s onboard control module, adjusting powertrain and chassis responses based on real-time sensor data. These settings are accessible via handlebar controls and displayed on the main instrumentation panel.
Traction control is embedded within the ride mode framework. This system limits rear-wheel slippage through dynamic engine output reduction rather than abrupt braking intervention.
Instrumentation and Data Visibility
The display unit of the 2025 Harley-Davidson® Fat Boy® features a five-inch analog speedometer combined with a digital LCD screen. The analog dial provides immediate speed visibility, while the LCD readout displays gear position, odometer, fuel range, RPM, and selected ride mode.
The instrumentation unit is mounted centrally above the handlebar riser. Backlighting adjusts automatically based on ambient lighting conditions, improving legibility during night riding or direct sunlight exposure. The system is also wired to accommodate accessory integration without requiring significant modification.
Tire Specifications and Wheel Construction
The 2025 Harley-Davidson® Fat Boy® uses Michelin® Scorcher® 11 tires, specifically selected for their wide footprint and surface contact consistency. The front tire is sized at 160/60R18 and the rear at 240/40R18. Both tires are radial and tubeless, constructed to withstand heat accumulation and lateral load through extended riding cycles.
These tires are mounted on Lakester solid-disc aluminum wheels. The wheels are finished in chrome and structurally built to minimize flex while preserving rotational balance.
Lighting and Visibility Enhancements
The primary lighting assembly of the 2025 Harley-Davidson® Fat Boy® features a 7.0-inch LED headlamp. This unit is housed within a nacelle that integrates into the front fork assembly. The LED system produces consistent beam coverage with a wide horizontal spread and defined cutoff to reduce glare to oncoming traffic. Running lights and brake lights are also LED, with a lighting signature optimized for rear visibility.
Body Finish and Styling Elements
The 2025 Harley-Davidson® Fat Boy® continues to present a sculpted fuel tank, integrated fenders, and minimal bodywork interruptions. The tank is fitted with a redesigned tank badge featuring Harley-Davidson® branding. Chrome detailing remains prominent across the exhaust shield, fork components, and engine casings.
Paint options for the 2025 model include single-tone and dual-tone selections. The finish is applied in multiple layers and treated with a clear coat for extended exposure durability. These finishes are applied at the factory using a robotic process that controls thickness, coverage, and curing temperatures.
Seating and Ergonomic Geometry
Seat height on the 2025 Harley-Davidson® Fat Boy® is set at 25.9 inches in laden condition, providing low center-of-gravity positioning. This layout supports riders of varying inseam lengths and allows easier maneuverability during low-speed operations. The rider seat is contoured for hip support and includes moderate bolstering to reduce fatigue on longer rides.
Forward foot controls remain consistent with cruiser geometry, placing the rider in a stretched position that reduces knee compression and supports relaxed highway operation. Handlebar placement allows for a slight reach while maintaining upright torso alignment. These measurements ensure rider comfort is mechanically supported rather than adjusted through software settings.
Structural Measurements and Capacities
The 2025 Harley-Davidson® Fat Boy® has a wheelbase of 65 inches and a rake of 30 degrees with 4.1 inches of trail. These figures contribute to the model’s straight-line stability and slow-speed balance. Overall length measures 93.1 inches. Ground clearance is set at 4.9 inches, which accommodates minor elevation changes without underbody contact.
Running weight is recorded at 694 pounds. Fuel capacity is 5 gallons. Oil capacity with filter is 5 quarts. These capacities support extended operational range without the need for frequent stops.
