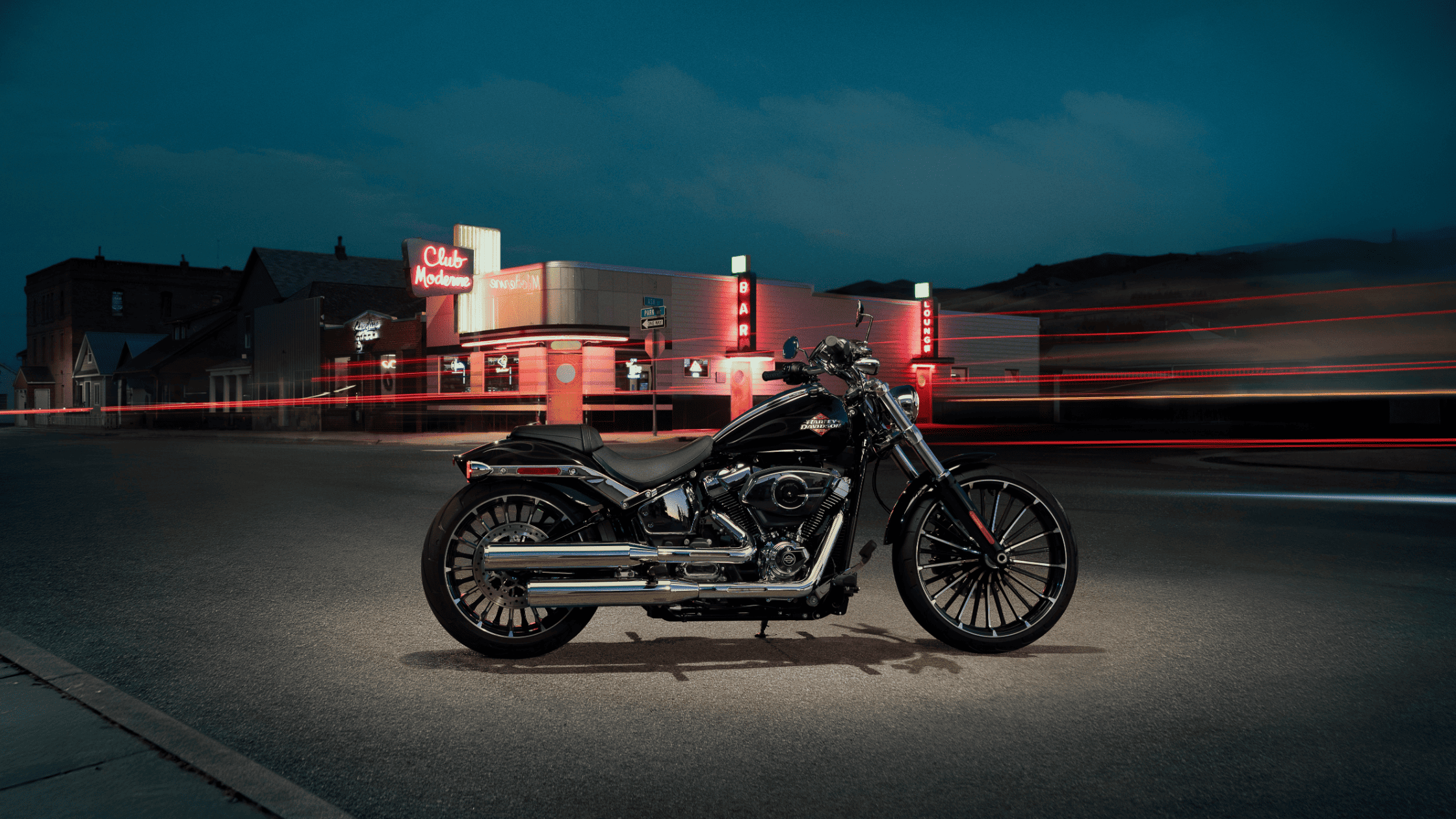

The 2025 Harley-Davidson® Breakout® returns with a focus on torque-driven performance and an extended stance that favors drag-inspired geometry. Its structure is based on the Softail® platform, with key refinements designed to deliver high-output acceleration, stable ride quality, and a performance profile that serves long, straight cruising and wide-open stretches. This model continues the brand’s intention to package high-displacement power within a visually aggressive chassis that supports stability, grip, and direct rider input.
Milwaukee-Eight® 117 Custom Engine
The 2025 Harley-Davidson® Breakout® is powered by the Milwaukee-Eight® 117 Custom engine. This engine displaces 117 cubic inches and uses oil and air cooling to manage operating temperature. The performance camshaft and high-performance intake are engineered for improved airflow and combustion efficiency.
The engine runs with dual counter-balancers that manage vibration without disconnecting the rider from the mechanical movement of the V-twin. The internal layout supports compact mass distribution, while the design prioritizes mechanical efficiency. The result is a drivetrain capable of maintaining steady output with predictable throttle response under various load conditions.
Softail® Frame Structure and Rake Geometry
The 2025 Harley-Davidson® Breakout® uses the Softail® frame, known for its combination of rigidity and lightweight steel construction. It is configured to support a long wheelbase, stretched rake, and a forward-set front end. The rake is set at 34 degrees with a trail of 5.7 inches, and the overall wheelbase extends to 66.7 inches. This setup enhances straight-line behavior and directional stability.
The frame geometry is developed to allow stiffness in key load-bearing areas while retaining flex characteristics that assist with front-end feedback. Fork and axle angles are matched to the steering input required by a larger front wheel and the weight distribution created by the long chassis.
Front Suspension and Rear Shock
Up front, the 49-millimeter dual-bending valve telescopic forks of the 2025 Harley-Davidson® Breakout® manage road variation with controlled damping. The design permits full fork travel while maintaining structural resistance during compression. The fork legs are rigid enough to handle braking forces and quick directional changes at cruising speeds.
The rear mono-shock is concealed and includes an external preload adjuster. This configuration supports ride adjustments based on weight and surface conditions. Its positioning helps retain the hardtail visual profile while still supplying the shock travel necessary for rear wheel compliance. Together, the suspension system works to keep tire contact consistent and the ride line stable.
Braking System with ABS
The front brakes use a 4-piston fixed caliper on a single disc, while the rear includes a 2-piston floating caliper. Both ends are connected to an anti-lock braking system. Brake feel is direct through the lever, with progressive engagement and consistent force distribution under load. The ABS system is tuned to reduce wheel lock in conditions involving sudden stops or compromised surface traction. It is a non-intrusive system, allowing braking input to remain under rider control while offering added security during high-deceleration situations.
Wheels, Tire Profile, and Traction
The 2025 Harley-Davidson® Breakout® features a 26-spoke cast-aluminum wheel design. The front wheel measures 21 inches in diameter, while the rear runs wide at 18 inches. The rear tire is 240 millimeters in width, offering a broad footprint that improves longitudinal traction and supports the engine’s torque characteristics.
The tires are Michelin® Scorcher® 11, selected for a balance of grip, tread wear, and wet-surface confidence. Their low-profile design contributes to the visual line of the motorcycle while also reinforcing contact stability under hard acceleration. Combined with the bike’s long wheelbase and weight distribution, this wheel and tire configuration supports the handling intent of the 2025 Harley-Davidson® Breakout®.
Rider Triangle and Control Reach
The ergonomics are defined by forward-mounted foot controls and a wide drag-style handlebar. This positions the rider in a stretched-out posture, which reduces hip angle and places the upper body forward. The low-slung solo seat holds the rider securely and contributes to a seat height of 25.6 inches laden. This position allows firm contact with the ground and facilitates a lower center of gravity.
The reach to the bars is moderate, supported by a riser that aligns the handlebar with the front fork angle. Rider input is transmitted efficiently through the bar into the front end, maintaining predictability under throttle and during light maneuvering. While designed for stability in straight lines, the rider triangle permits enough leverage for lane transitions and urban navigation.
Fuel Tank, Lighting, and Instrument Cluster
Fuel capacity measures 5 gallons, delivered through an injection system tuned to match the engine’s airflow demands. The tank is designed with a narrow midsection to allow leg clearance while integrating visually with the overall bike lines. Its shape flows cleanly into the seat and rear fender without interrupting rider posture.
Lighting is fully LED, including the signature headlamp, tail lamp, turn signals, and brake lights. Visibility is strong in low-light environments, and the electrical draw is minimal. The instrument panel is mounted within the riser and features a digital LCD display. Information includes speed, gear position, odometer, fuel level, and trip data.
Chassis Dimensions and Overall Weight
The motorcycle measures 93.3 inches in length and has a ground clearance of 4.5 inches. Rake and trail are engineered for stable road manners. Running order weight is listed at 681 pounds. The long dimensions contribute to a planted ride, while the low center of gravity keeps the chassis predictable in slow-speed handling.
Every dimension is calibrated to support the role of the 2025 Harley-Davidson® Breakout® as a power cruiser. The stance is long and stretched, while the load-bearing distribution maintains axle weight appropriate to both the front steering input and rear tire output.
Exhaust System and Acoustic Output
The exhaust system is a 2-into-2 design with staggered pipes, finished in chrome. The exhaust is positioned to match the rear fender lines and includes heat shielding to manage external temperatures. Exhaust flow is designed to optimize back pressure for the Milwaukee-Eight® 117 Custom engine, ensuring torque delivery remains accessible through mid-range throttle.
The acoustic profile is tuned for clarity and presence without exceeding compliance levels. It delivers a low-frequency rumble at idle and a sharper, high-output response under load. The exhaust system contributes not only to performance but also to the overall mechanical balance of the motorcycle.
Visit Tampa Bay Harley-Davidson® for a Test Ride
The 2025 Harley-Davidson® Breakout® pairs the strength of the Milwaukee-Eight® 117 engine with a stretched Softail® frame for a ride that delivers both power and control. Its long-wheelbase geometry supports confident handling, while torque delivery remains consistent across varied speeds. Tampa Bay Harley-Davidson® near Brandon, FL, offers the opportunity to explore this performance cruiser up close and assess its detailed design. Schedule your test ride and experience its road behavior and precision firsthand. From acceleration to layout, this model is engineered to stand out with purpose.
